Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of low voltage control cable in China. If you're going to wholesale bulk low voltage control cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.
Low voltage control cable consists of grouped insulated conductors engineered for 300/500V & 450/750V low voltage control and status signalling across industrial automation, panel wiring, PLC I/O, building management and instrumentation systems. Constructed with flexible stranded copper cores, all conductors are cabled together and protected by a single outer sheath to streamline wiring, reduce conduit space and cut installation labour. EMI protection can be added via aluminium foil or tinned copper braid screening fitted with drain wire, ideal for locations where motor drives and heavy machinery create electrical noise. Offered in 2 up to 50 core configurations, with cross-section range from 0.5–6 mm², PVC and LSZH outer sheath choices, compliant with CE, RoHS and CPR standards. As a professional low voltage control cable manufacturer, Jiaxing Doublewin Cable Co., Ltd manufactures these cables locally at our Haiyan factory in Zhejiang, China and delivers bulk shipments to global clients.
✓ Core count (2–50)
✓ Shielding: foil, braid or foil+braid
✓ Conductor colour codes (BS EN or custom)
✓ Jacket material: LSZH or PVC; jacket colour (black, grey, blue)
✓Brand marking & sequential metre marking
✓Reel/box packaging (100m/305m/1000ft standard or custom)
Technical Specifications

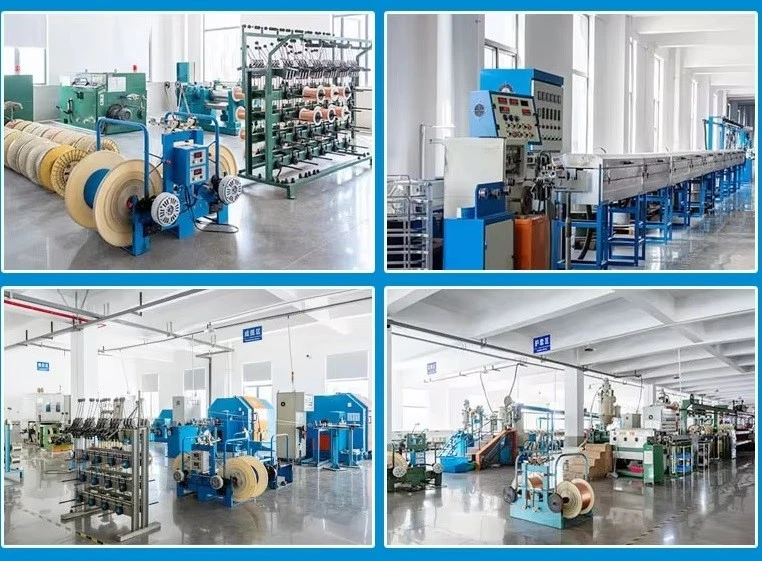

Produced in our Haiyan, Zhejiang plant following ISO 9001:2015 quality standards. Our low voltage control cable supports custom core numbers, conductor cross-sections, shielding options and jacket materials to meet diverse industrial automation and control panel project requirements.
| Product Name | Low voltage control cable | ||
|---|---|---|---|
|
300/500V (≤1.0 mm²), 450/750V (≥1.5 mm²), 600/1000V (power cores) | ||
| Conductor | Stranded bare or tinned copper, IEC 60228 Class 5 (flexible) or Class 2 (semi-rigid) | ||
| Conductor sizes | 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 mm² | ||
| Core counts | 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50 | ||
| Core identification | Colour-coded per VDE 0293, or numbered cores | ||
| Insulation | PVC (70 °C / 105 °C), LSZH, or PE for high-frequency | ||
| Shield (optional) | Al foil + drain wire, tinned Cu braid (≥85%), or foil + braid | ||
| Outer jacket | PVC (–5 to +70 °C) or LSZH (–20 to +70 °C) | ||
| Min. bend radius | 6× OD fixed; 10× OD flexing | ||
| Flame performance | EN 50575 (CPR) Eca–B2ca per jacket; IEC 60332-1-2; IEC 60332-3-24 | ||
| Standards | IEC 60228, VDE 0281, BS 6231, EN 50575, UL 1277 (TC-ER), UL 13 (PLTC) | ||
| Approvals | ISO 9001, CE, RoHS, REACH; optional UL/cUL, TUV, ABS | ||
| Standard length | 100 m / 200 m / 305 m / 500 m / 1000 m on reel or drum | ||
| MOQ | 5,000 m standard; 10,000 m custom print |
Core Count & Conductor Size Matrix
Below are the most-ordered low voltage control cable configurations. Custom core counts up to 50, mixed conductor sizes, and flat constructions are available on OEM order.
| Core Count | Conductor Size | Voltage | Shield | Typical Use |
| 2 - 4 core |
1.5 - 4.0 mm² |
450/750V | Unshielded | Motor start/stop, local switching |
| 5 -8 core | 0.75 - 1.5 mm² | 300/500V | Unshielded / Foil | Panel to field device wiring |
| 10 - 16 core | 0.5 - 1.0 mm² | 300/500V | Foil / Braid | PLC digital & analogue I/O |
| 18 - 24 core | 0.5 - 0.75 mm² | 300/500V | Foil + Braid | Process plant, multi-sensor runs |
| 30 - 50 core | 0.5 mm² | 300/500V | Braid | Building management, large I/O cabinets |
Low Voltage Control cable Display
Why Low Voltage Control Cable Powers Every Industrial System
Almost every machine, panel and building automation system relies on low voltage control cable to carry the 24 V DC digital signals, 4–20 mA analogue loops, 230 V switch commands and feedback signals that keep equipment running safely. These cables operate below mains voltage, but they are the nervous system of the plant - a broken or noisy control circuit stops the machine just as surely as a failed motor. A properly rated low voltage control cable ensures these signals travel cleanly between the PLC, sensors, actuators and HMIs, while meeting IEC, VDE and UL insulation and fire requirements.
Dual Voltage Grades
300/500V for signal, 450/750V for control shared with mains.
01
2 to 50 Cores
Multi-core designs replace bundles of single wires.
02
Flexible Class 5 Copper
Stranded for panel wiring, drag-chains and robotics.
03
Shielded or Unshielded
Foil, braid or no shield to match EMI environment.
04
Low Voltage Control Cable - Voltage Ratings Explained
The voltage grade of a low voltage control cable determines the insulation thickness, the maximum working voltage between conductors, and the high-voltage withstand test it must pass. Choosing the correct grade is a safety-critical decision.
300/500V
Signal & low-power control
Conductors up to 1.0 mm² with thinner insulation (≈0.6 mm). For 24 V DC, 4–20 mA, sensor, encoder and low-voltage control circuits. Must not share a conduit with mains power.
450/750V
Control shared with mains wiring
Conductors 1.5 mm² and above with thicker insulation (≈1.0 mm). For 230 V control relays, contactors, motor circuits and cables that may share a tray with 230/400 V mains.
Quick voltage selector
* 24 V DC PLC I/O, sensors, encoders → 300/500V low voltage control cable
* 230 V relays, contactors, motor control → 450/750V low voltage control cable
* Sharing conduit/tray with mains power → 450/750V (and consider shielded for noise)
* UL / North America market → 600V rated TC-ER or PLTC cable

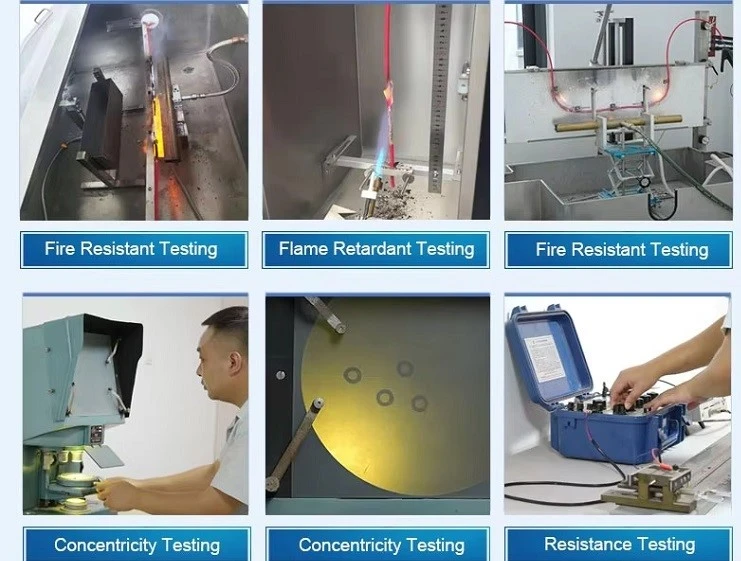

Quality Control & Testing
Every reel of low voltage control cable is 100% tested before shipment. The voltage rating is verified by a high-voltage withstand test at the specified test voltage (e.g. 2000 V AC for 300/500V, 2500 V AC for 450/750V). We also test conductor resistance per IEC 60228, insulation resistance between every pair of cores and between cores and shield, and shield continuity on shielded versions. A retained sample from each batch supports full traceability.
Conductor Resistance
IEC 60228 on every core - critical for loop accuracy.
Insulation Resistance
Core-to-core and core-to-shield.
Batch Traceability
Sample retained per lot.
Applications of Low Voltage Control Cable
Low voltage control cable is one of the most widely specified cable types in industrial and commercial construction. It connects low-voltage control and signal circuits across automation, process, and building systems.
Industrial Automation
PLC digital and analogue I/O between cabinet and field devices.
Machine Tools
CNC, lathe, press - solenoids, limit switches, encoders, E-stop.
Process Plants 4–20 mA loops, 24 V DC sensor and actuator wiring.
Building Management (BMS) HVAC, lighting, access control and fire alarm interfaces.
Instrumentation Analogue signal runs to DCS and SCADA systems.
OEM / ODM Customisation
As the manufacturer, we build custom low voltage control cable to your specification - not just from a catalogue. Typical OEM options include:
Voltage Grade
300/500V, 450/750V or 600/1000V per core size.
Core Count & Size
Any core count 2–50, mixed sizes within one cable.
Shield & Drain
Unshielded, foil, braid, or foil+braid with drain wire.
Jacket Material
PVC (general) or LSZH (public buildings, CPR B2ca–Eca).
Core Identification
Custom colour code, numbered cores, pre-printed legend.
Private Label
Custom jacket printing with brand, model and meter mark.
MOQ: 5,000 m standard, 10,000 m for custom print or non-stock configuration. Samples 5–7 working days.
