Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of lszh 2 core speaker cable in China. If you're going to wholesale bulk lszh 2 core speaker cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.

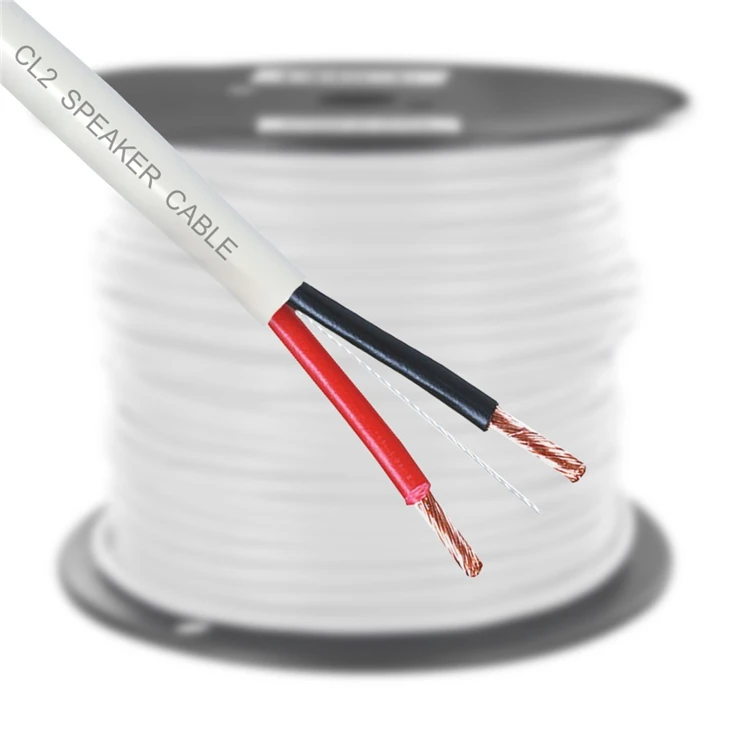

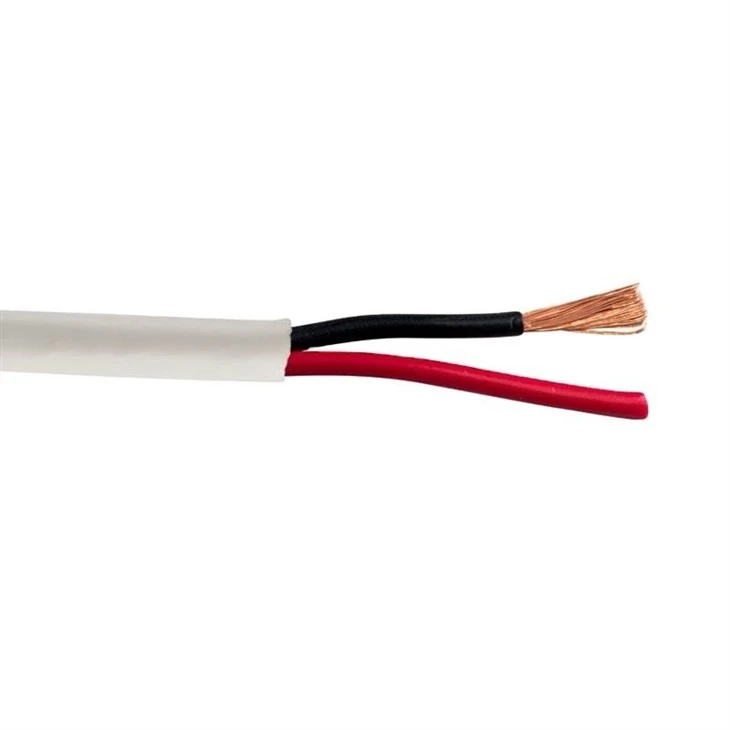

LSZH 2 core speaker Cable - OFC 2-Conductor PA & Professional Audio Cable

LSZH 2 core speaker cable is a two-conductor audio cable with low smoke zero halogen sheath, designed for transmitting audio signals from amplifiers to loudspeakers. The LSZH jacket releases minimal smoke and no toxic halogen gas during fire, making it ideal for public buildings. Available with OFC conductors and multiple AWG sizes. This flexible cable keeps stable audio performance and clear sound quality. Widely used in home theatre, multi-room audio, 70V/100V commercial PA systems. As a direct cable manufacturer, we support bulk supply and OEM customization.

Features:
-99.97% Oxygen Free bare copper conductors
-High Strand Count
-Flexibility
-Easy Pull Coated LSZH jacket
-Easy Strip Construction
-UL and In-Wall rated, RoHS, CE.

Why Choose Our LSZH 2 Core Speaker Cable

For professional audio and distributed PA systems, the round profile loudspeaker cable is the installer-preferred choice. Unlike flat twin-lead, the round jacket slides through conduit, trunking and cable trays without snagging, and the symmetrical cross-section gives a cleaner appearance in exposed runs. Our cable is built with pure OFC conductors for low resistance over long distributed runs.

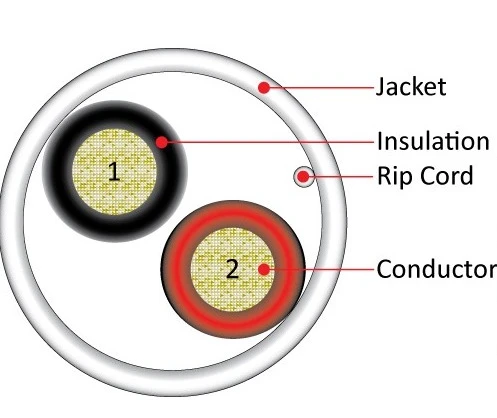

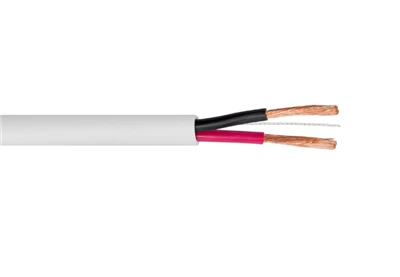

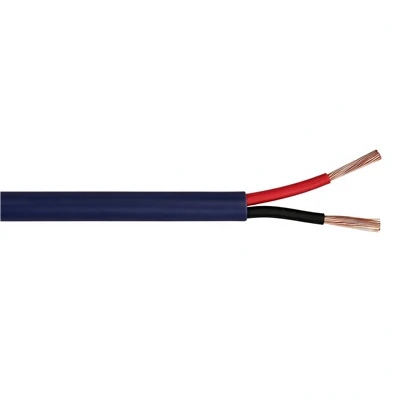

Round LSZH Jacket

Single Round Jacket

Symmetrical round profile pulls smoothly through conduit and cable trays - no snagging, no twisting.

Raw Material

Oxygen-Free Copper (OFC)

99.95% pure OFC stranded conductors for low line loss on long PA and distributed audio runs.

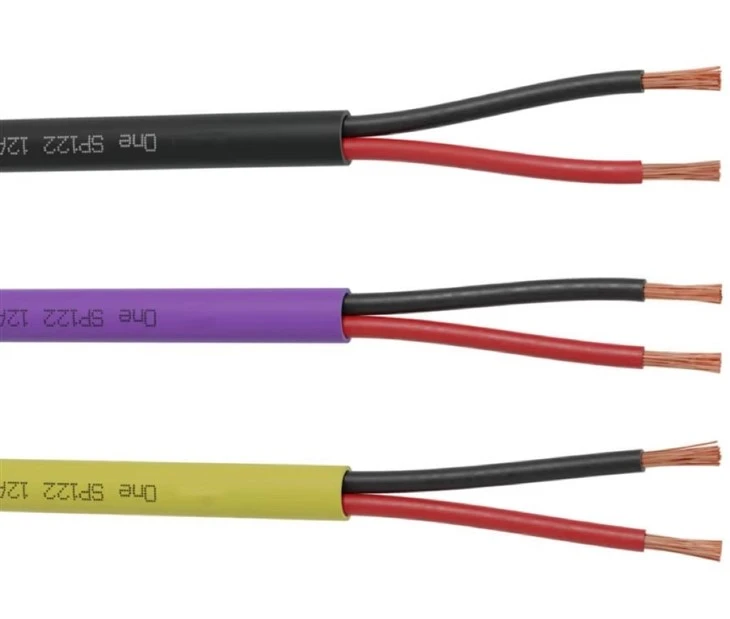

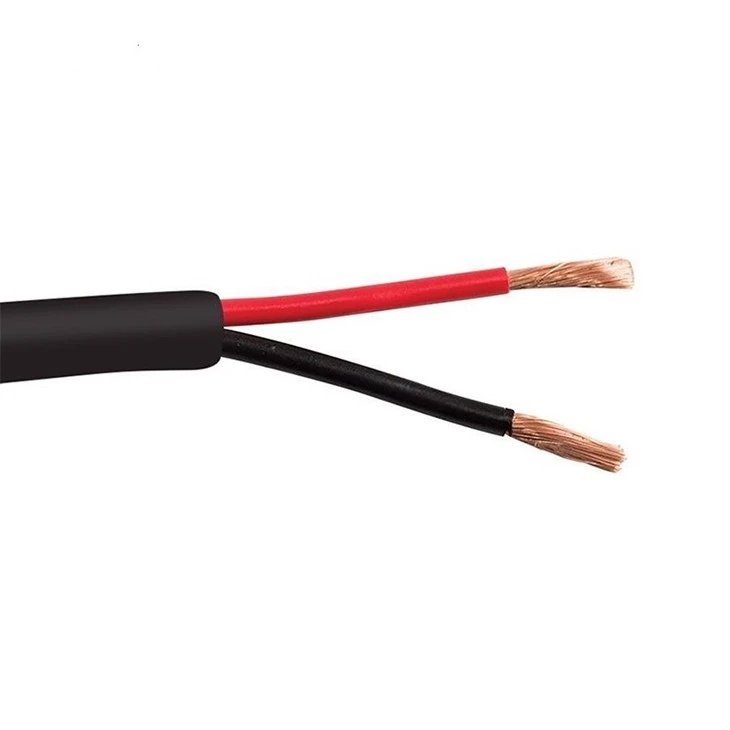

Red & Black Cores

Colour-Coded Cores

Red & black inner conductors ensure correct polarity across every speaker in a multi-zone system.

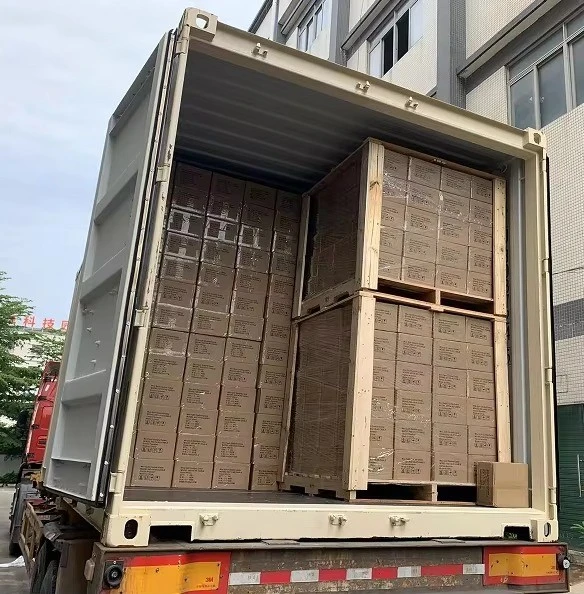

Factory Warehouse

Factory-Direct Bulk Pricing

Direct from our manufacturer -no trading-company markup. Custom printing & packaging available for your brand.

LSZH 2 Core Speaker Cable Technical Specifications

Two-core speaker cable with low smoke zero halogen sheath. Optional OFC conductors, available in various AWG sizes. LSZH jacket meets low fire hazard requirements for public building installations.

Parameter	Specifications
Product Name	LSZH 2 core speaker cable
Cable Type	Two-core loudspeaker cable
Conductor Sizes	2 × 10 AWG, 2 × 12 AWG, 2 × 14 AWG, 2 × 16 AWG, 2 × 18 AWG
Conductor Material	Oxygen-Free Copper (OFC)
Insulation Material	PVC (standard) or LSZH (low smoke zero halogen) on request
Outer Jacket Material	PVC or LSZH, flame retardant, single round profile
Jacket Colour	Black (standard); white, grey or custom colour on request
Rated Voltage	300/300 V
Temperature Range	-15°C to +70°C (PVC) / -15°C to +90°C (LSZH on request)
Fire Performance	CPR EN 50575 (Eca / Dca class available); IEC 60332-1 flame retardant
Compliance	CE, RoHS, CPR EN 50575
Packing	100 m / 305 m (1000 ft) / 500 m per reel, plastic spool, wood spool, carton box or custom

Part No.	Description	Conductor	Insulation	Jacket
16/2-OFC-65S	16AWG 2C Speaker cable /Audio cable 65strand	65*0.16mm BC	2.1mm PVC	5.3mm PVC/LSZH
16/2-OFC-26S	16AWG 2C Speaker cable /Audio cable 26strand	26*0.254mm BC	2.1mm PVC	5.3mm PVC/LSZH
16/2-OFC-65S-HD	16AWG 2C Speaker cable /Audio cable 65strand Heavy Duty	65*0.16mm BC	2.1mm PVC	6.5mm PVC/LSZH

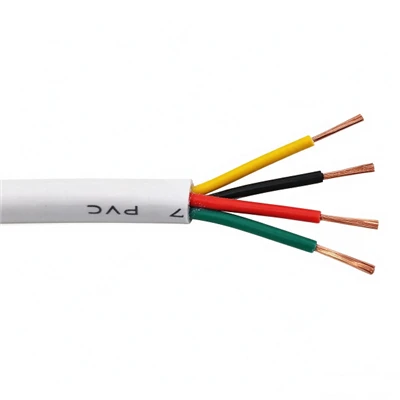

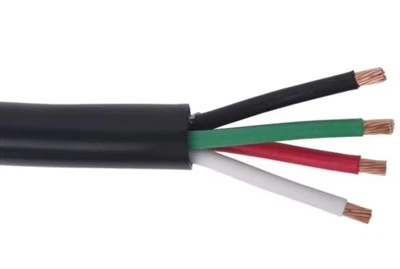

16/4-OFC-65S	16AWG 4C Speaker cable /Audio cable 65strand	65*0.16mm BC	2.1mm PVC	6.5mm PVC/LSZH
16/4-OFC-26S	16AWG 4C Speaker cable /Audio cable 26strand	26*0.254mm BC	2.1mm PVC	6.5mm PVC/LSZH
16/4-OFC-65S-HD	16AWG 4C Speaker cable /Audio cable 65strand Heavy Duty	65*0.16mm BC	2.1mm PVC	7.2mm PVC/LSZH
14/2-OFC-105S	14AWG 2C Speaker cable /Audio cable 105strand	105*0.16mm BC	2.65mm PVC	6.5mm PVC/LSZH
14/2-OFC-105S-HD	14AWG 2C Speaker cable /Audio cable 105strand Heavy Duty	105*0.16mm BC	2.65mm PVC	7.3mm PVC/LSZH
14/4-OFC-105S	14AWG 4C Speaker cable /Audio cable 105strand	105*0.16mm BC	2.65mm PVC	7.3mm PVC/LSZH
14/4-OFC-105S-HD	14AWG 4C Speaker cable /Audio cable 105strand Heavy Duty	105*0.16mm BC	2.65mm PVC	8.0mm PVC/LSZH
14/2-OFC-41S	14AWG 2C Speaker cable /Audio cable 42strand	41*0.254mm BC	2.65mm PVC	6.5mm PVC/LSZH
14/4-OFC-41S	14AWG 4C Speaker cable /Audio cable 42strand	41*0.254mm BC	2.65mm PVC	7.3mm PVC/LSZH
12/2-OFC-65S	12AWG 2C Speaker cable /Audio cable 65strand	65*0.254mm BC	3.3mm PVC	8.0mm PVC/LSZH
12/4-OFC-65S	12AWG 4C Speaker cable /Audio cable 65strand	65*0.254mm BC	3.3mm PVC	9.4mm PVC/LSZH

Applications of LSZH 2 Core Speaker Cable

Commercial Audio Systems

LSZH 2 core speaker cable connects loudspeakers for commercial audio systems in offices, retail spaces, hotels and restaurants. It is selected for projects requiring low-smoke, halogen-free cable materials.

Public Buildings and Shared Facilities

Schools, universities, conference centers and exhibition halls use this LSZH speaker cable. It meets strict material safety requirements for public occupied areas.

Professional AV and Conference Systems

Conference rooms, auditoriums and professional AV installations adopt this speaker cable to create stable connections between amplifiers and loudspeakers.

Transportation and Infrastructure Projects

Transport hubs, stations and tunnel infrastructure projects require cables with low smoke, zero halogen and reliable fire performance. Our LSZH 2 core speaker cable fully meets these strict safety standards for public audio PA systems.

Hotels and Hospitality Projects

Hotels, restaurants and function rooms use this LSZH 2 core speaker cable for distributed speaker systems. It delivers stable signal transmission for background music and public announcements.

OEM Audio Equipment Manufacturing

Audio equipment makers, loudspeaker assemblers and AV companies select our customized 2-core LSZH speaker cable to integrate into their finished audio product lines.

Our advantage

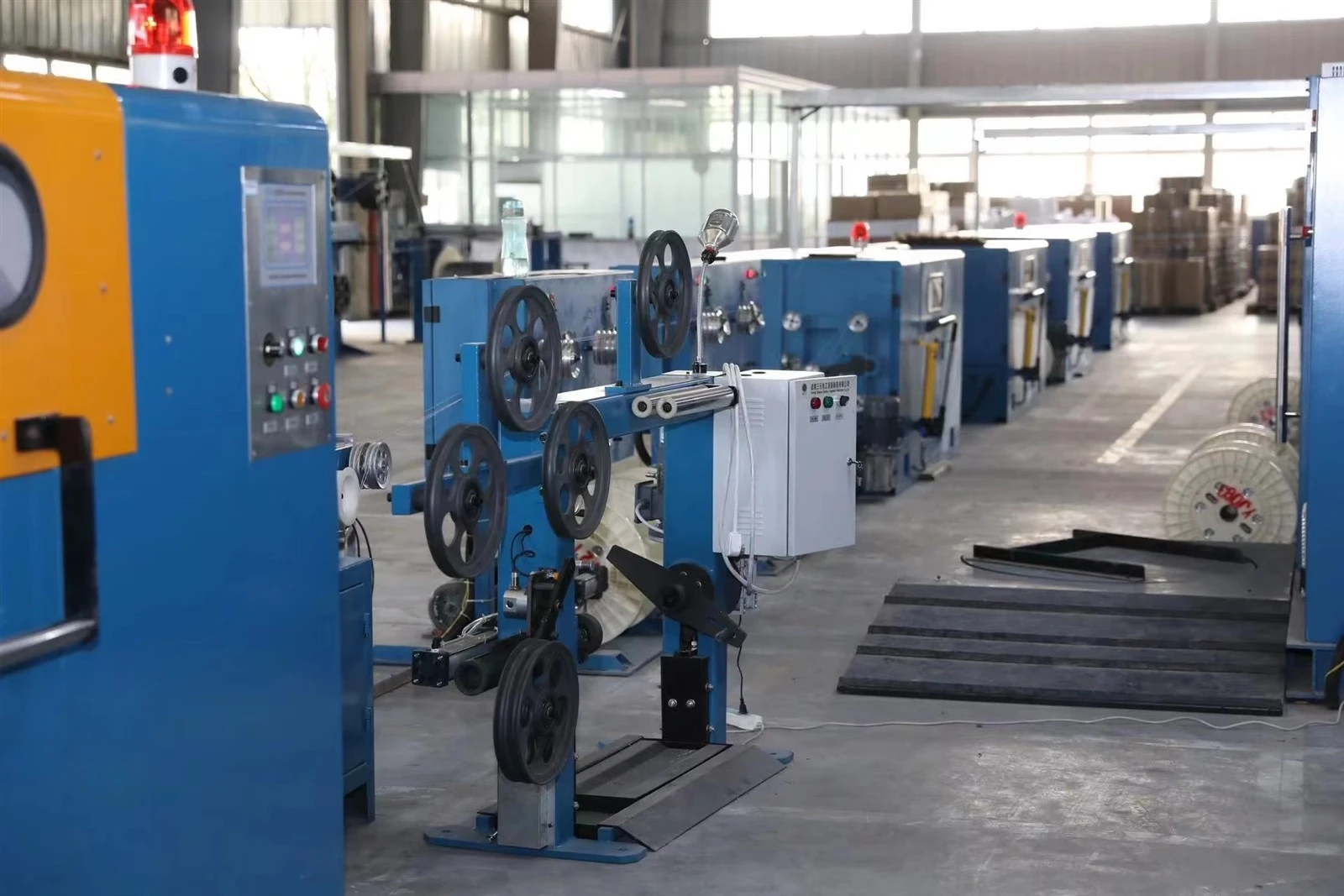

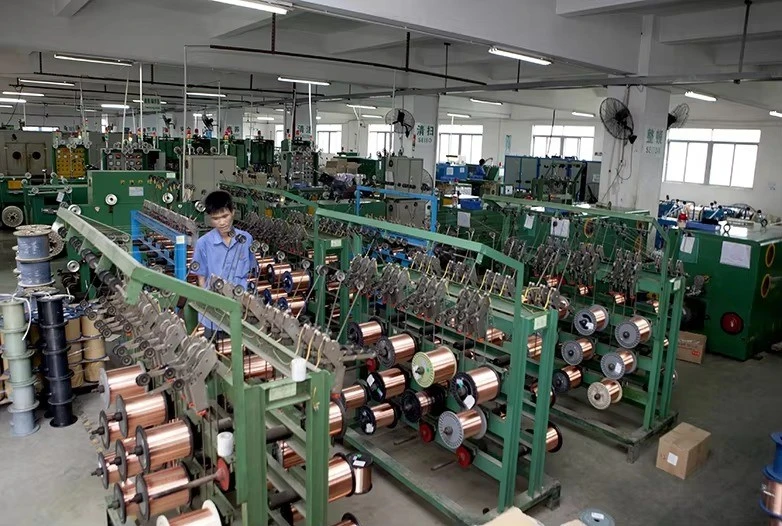

Direct From the Manufacturer - Jiaxing Doublewin Cable Co., Ltd. We are not a trading company. Founded as a copper conductor workshop in 1997 and incorporated as Jiaxing Doublewin Cable Co., Ltd in 2008, we draw conductors, extrude insulation, cable the pairs, apply the sheath and electrically test every reel in our Haiyan, Zhejiang factory. About 90% of our output is exported to Europe, South America, Middle East and Southeast Asia.

1997

Founded (copper workshop)

5000m²

Factory area

Certification

ISO 9001:2015 CE CPR EN 50575 RoHS

90%

Export share

LSZH 2 Core Speaker Cable Supplier for Global Markets

We welcome inquiries from companies involved in:

• Electrical and audio cable distribution

• Cable importing and wholesale

• Professional AV equipment supply

• Loudspeaker and audio equipment manufacturing

• Commercial sound system installation

• Electrical contracting and project procurement

• Building technology and infrastructure supply

• OEM and private-label product development

Whether you are sourcing standard LSZH speaker cable or developing a customized product, providing clear technical and purchasing information will help us evaluate your requirements.

FAQ

Q: : What is LSZH 2 core speaker cable?

A: LSZH 2 core speaker cable is a two-conductor audio cable designed to transmit audio signals between amplifiers and loudspeakers. It adopts low smoke zero halogen outer sheath, and is widely used for public address and background music systems in public and commercial buildings.

Q: What does LSZH mean in speaker cable?

A: LSZH stands for Low Smoke Zero Halogen. When burned, this cable jacket releases very little smoke and no toxic halogen acid gas. It protects people and equipment in case of fire.

Q: What is the difference between LSZH and PVC speaker cable?

A: LSZH speaker cable emits low smoke and zero halogen toxic gas during fire, meeting strict public building safety requirements. PVC speaker cable has lower cost but will produce dense smoke and corrosive halogen gas when burning.

Q: Is LSZH speaker cable fire-resistant?

A: LSZH refers to low smoke zero halogen material property, not fire resistance. Our LSZH speaker cable is flame retardant to slow flame spread. It does not maintain circuit continuity under long-time fire exposure unless specially engineered.

Q: Is LSZH 2 core speaker cable suitable for commercial buildings?

A: Yes. This LSZH 2 core speaker cable is ideal for commercial buildings, hotels, schools and other occupied public premises where low-smoke and non-toxic fire performance is required by codes.

Q: What conductor sizes are available?

A: We supply multiple conductor sizes for LSZH 2 core speaker cable, including 0.75mm², 1.0mm², 1.5mm², 2.5mm². Custom cross-section options are available upon request.
