Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of 4 core fire alarm cable in China. If you're going to wholesale bulk 4 core fire alarm cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.

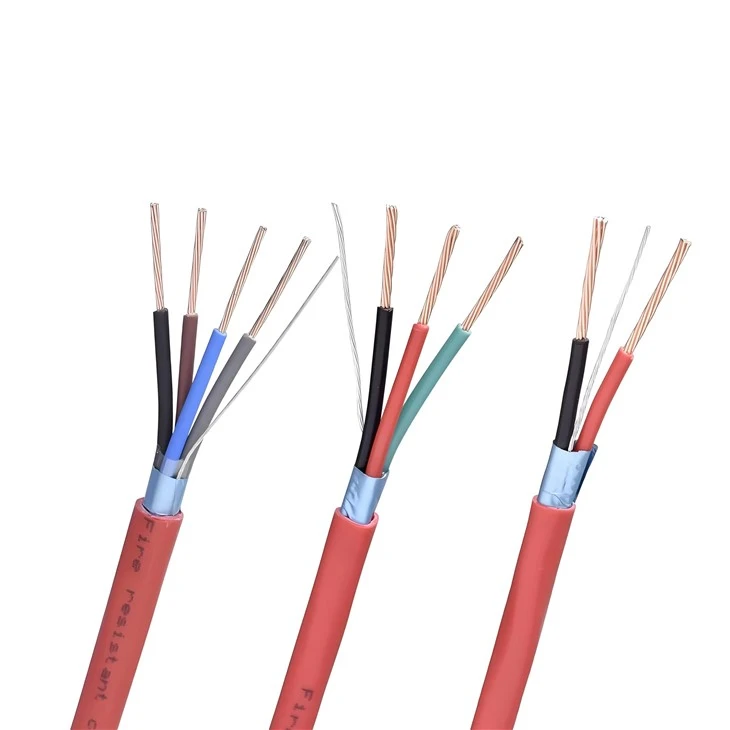

4 core fire alarm cable consists of four insulated conductors built for fire detection, alarm, monitoring and control circuits. The four conductors support multiple wiring layouts defined by fire alarm equipment manufacturers and project designers. Select conductor material, cross-sectional area, insulation, shielding and outer sheath according to electrical demands and installation environment.
Our fire alarm cables deliver distinct performance grades: flame retardant, low smoke halogen-free and fire-resistant. These performance categories cannot be interchanged. Flame-retardant cable restricts flame spread under defined test criteria. Fire-resistant cable preserves circuit integrity for a set duration during fire exposure. Low-smoke halogen-free construction controls smoke emission and eliminates corrosive halogen gas release. To select the proper 4 core fire alarm cable, confirm the applicable standard, cable classification, installation environment and full project specifications.
As a direct manufacturer, we evaluate your technical requirements and match the correct cable construction using our in-house production capacity.
Key Features of 4 Core Fire Alarm Cable

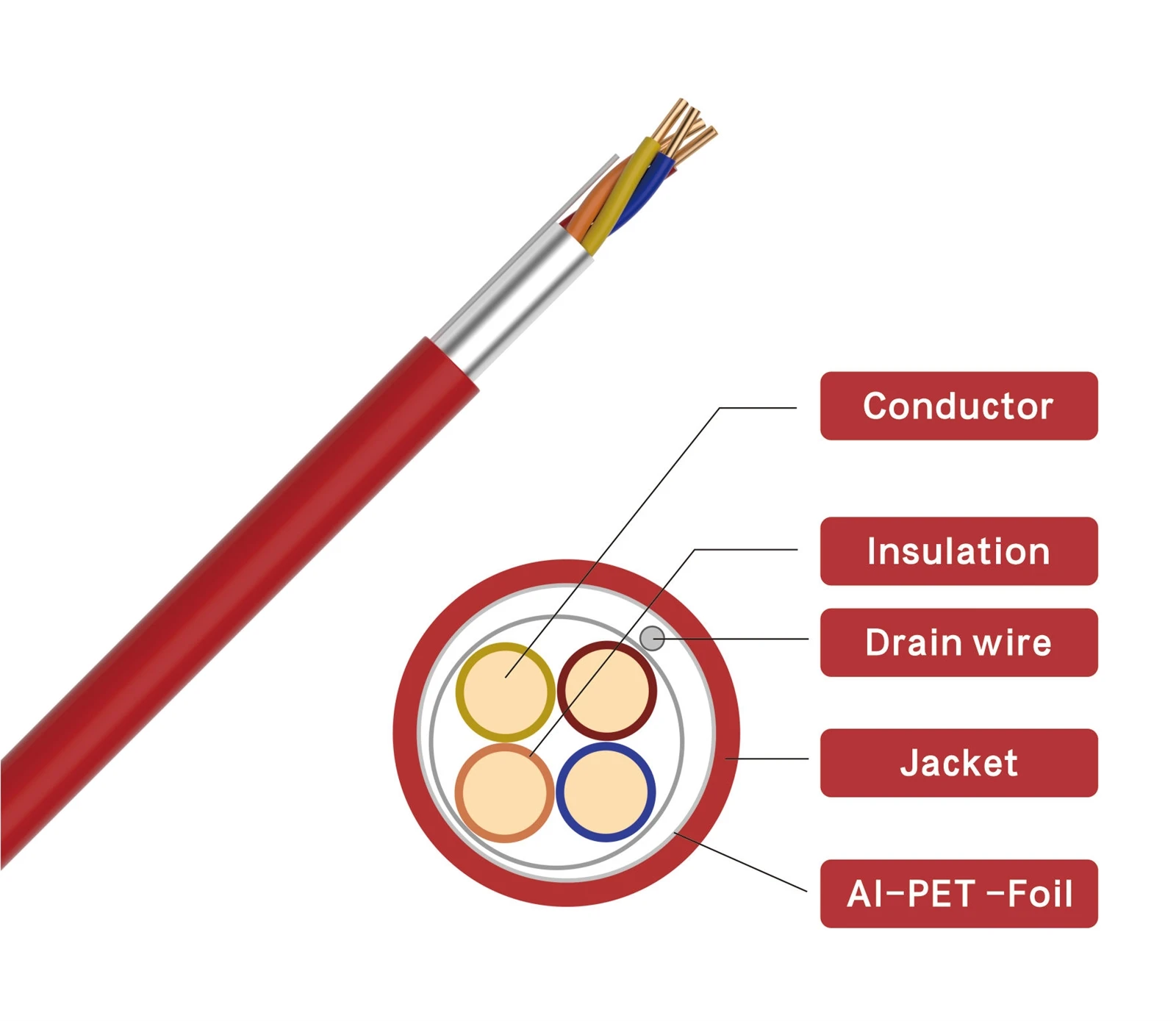

1.Four-Core Conductor Configuration
The four-conductor design supports fire alarm and monitoring system wiring. Define conductor quantity, cross-section, material and colour coding to match system design and installation standards.
2. Insulation and Outer Sheath Options
Choose insulation and sheath materials based on approved cable design and site environment requirements. Our available materials include PVC and LSZH compounds for different project specifications.
3. Flame-Retardant Cable Options
Our flame-retardant cables meet defined flame propagation standards. Verify flame performance via the corresponding test standard and finished cable sample. Material names alone cannot determine flame performance.
4. Fire-Resistant Cable Options
Certain fire alarm circuits demand fire-resistant cable that maintains circuit integrity for a fixed duration under fire test conditions. Fire resistance relies on the full cable structure and relevant certification requirements. This performance is independent of standard flame-retardant properties.
5. Shielding Options

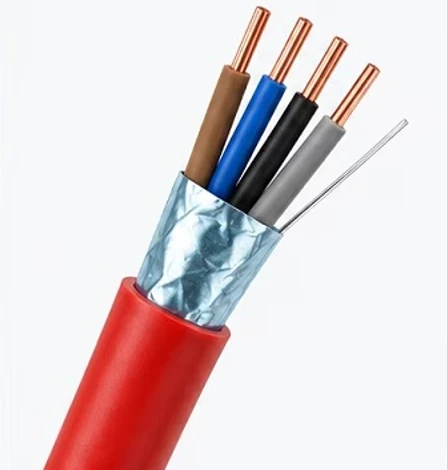

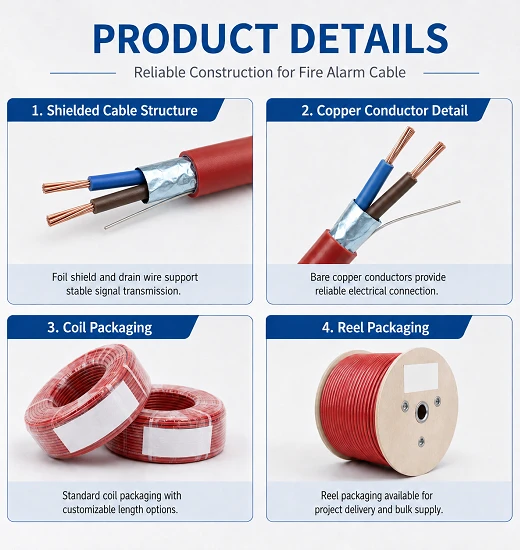

Use shielded cable constructions for projects requiring electromagnetic interference protection. Available designs include foil shielding, braided shielding and drain wire, as defined in the approved specification.
6. Custom Manufacturing
We offer custom manufacturing covering conductor gauge, insulation, shielding, outer sheath, cable colour, surface marking and packaging, subject to our production capacity.

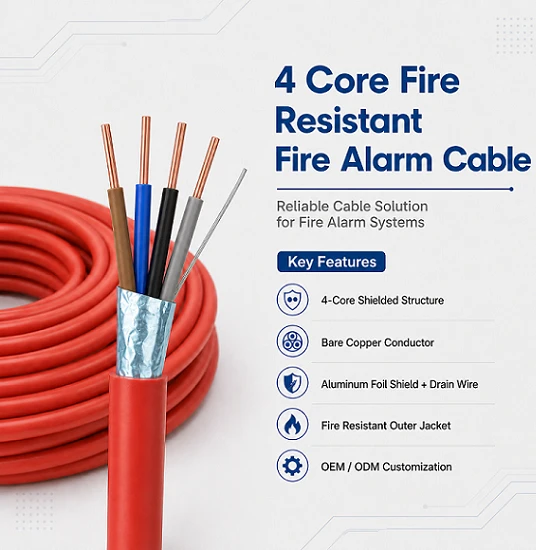

4 Core Fire Alarm Cable Technical Specifications
Manufactured at our Haiyan, Zhejiang factory complying with ISO 9001:2015 standards. This 4 core fire alarm cable supports custom jacket materials, colors and construction to meet different fire safety project specifications.
| Product Name | 4 Core Fire Alarm Cable |
|---|---|
| Fire Resistance Grade | PH30 / PH60 / PH120 per EN 50200; IEC 60331; BS 6387 CWZ |
| CPR EN 50575 Class | Cca(standard); B2ca (on request) |
| Core Counts | 4 core |
| Conductor Sizes | 4*1.0mm²/ 1.5mm²/ 2.5mm² |
| Conductor Material | Stranded/ Solid bare copper |
| Insulation Color | Red/Black (2-core); BS EN colour code for multi-core |
| Insulation Material | PVC or LSZH |
| Shielding | Unshielded standard, Al foil + drain wire, or braid copper on request |
| Jacket color | Red (standard); white, orange, custom on request |
| Jacket Material | PVC or LSZH,flame retardant |
| Rated Voltage | 300/500 V |
| Temperature Range | -15°C to +70°C (PVC); up to +90°C (LSZH) |
| Certifications | ISO 9001:2015 (factory), CE, CPR EN 50575, RoHS |

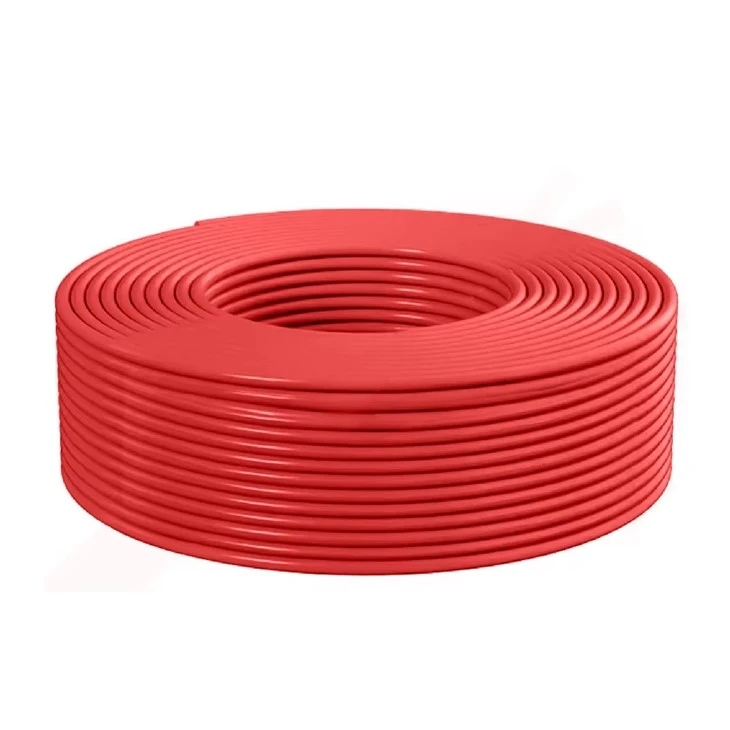

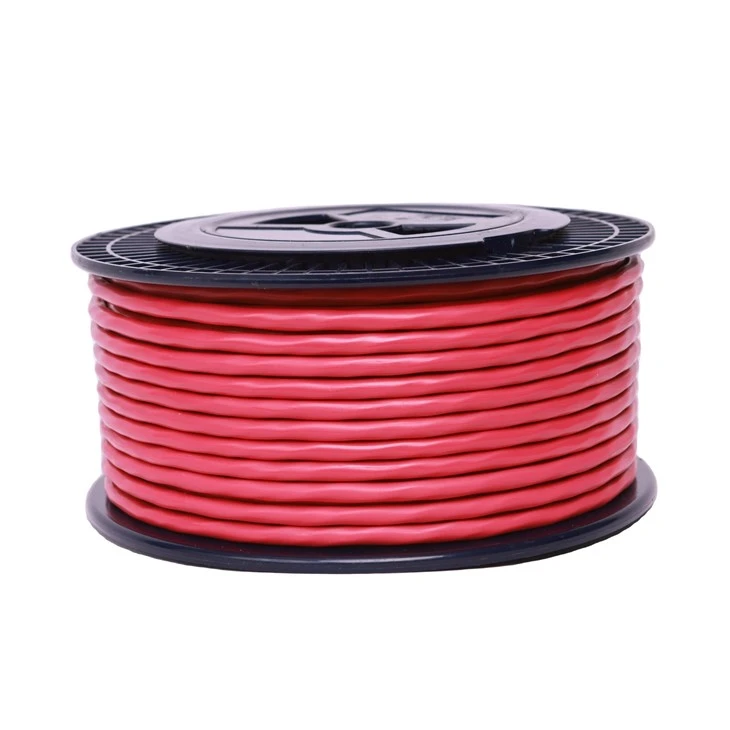

| Packing | 100 m / 305 m (1000 ft) / 500 m per reel or box |
| Number of Cores | Nominal cross section Conductor (mm²) | Nominal jacket outer diameter(mm) | Cable Weight(kg/km) | Conductor resistance at 20°C(Ohm/km) |
| 2 |
0.8 |
5.7 | 47.5 | 23.8 |
| 2 | 1.0 | 6.1 | 52 | 19.5 |
| 2 | 1.5 | 7.1 | 70 | 13.3 |
| 2 | 2.5 | 8.3 | 98.5 | 7.98 |
| 4 | 0.8 | 6.7 | 76.5 | 23.8 |
| 4 | 1.0 | 7.2 | 85.6 | 19.5 |
| 4 | 1.5 | 8.1 | 116 | 13.3 |
| 4 | 2.5 | 10.4 | 185 | 7.98 |
Why 4 Core Is the Workhorse of Fire Alarm Wiring
A fire alarm system has two electrical jobs: detect the fire (detectors, call points) and warn the occupants (sounders, strobes). Most field devices need both a signal circuit and a power circuit, which is exactly what a 4 core fire alarm cable delivers in a single pull - two cores for the addressable loop or conventional zone, two cores for the sounder power, remote indicator or tamper/monitor return. The 4-core layout matches the standard L1, L2, S, V wiring designations of BS 5839-1, which is why it is the single most-specified configuration in residential, commercial and industrial fire alarm installations. Using one 4-core cable instead of two 2-core cables halves the pulling time, halves the conduit fill, and removes the risk of mixing up the two circuits on a crowded site.
Signal + Power
2 cores for loop/zone, 2 for sounder/tamper.
BS 5839 L1/L2/S/V
Matches standard fire alarm wiring designations.
One-Pull Install
Halves conduit fill and pulling time vs two 2-core.
Red / White Jacket
Red for instant ID, white for concealed aesthetic.
PVC / LSZH / PH
General, low-smoke, or fire-resistant up to 120 min.
Global Compliance
BS 5839-1, EN 54, NFPA 72, IEC 60331.
FIRE ALARM CABLE SELECTION GUIDE
Compare common options for fire alarm applications
Flame Retardant Cable
• Helps limit flame spread
• Suitable for general fire alarm wiring
• Reliable for standard fire protection projects
Best For:
General installations
Fire Resistant Cable
• Maintains circuit integrity during fire
• Supports emergency signal transmission
• Ideal for critical alarm and emergency circuits
Best For:
Circuit survival applications
LSZH Fire Alarm Cable
• Low smoke, zero halogen jacket
• Improves safety in enclosed environments
• Suitable for public buildings and indoor installations
Best For:
Indoor safety-focused projects
Selection can also vary by shielding, core count, jacket material, and installation environment.
Applications of 4 Core Fire Alarm Cable
Select the proper cable based on local building codes, fire safety regulations, system design and project specifications. Not all 4 core fire alarm cable works for every fire alarm circuit.
Smoke detectors
addressable analogue and conventional sensors connected in loops from the control panel.
Heat detectors
fixed-temperature and rate-of-rise detectors in kitchens, boiler rooms and high-temperature areas.
Manual call points
break-glass or resettable MCPs at evacuation exits and fire access points.
Sounders & beacons
audible and visible alarm notifications for building occupants.
Fire alarm control panels
connection between the FACP and its addressable detection loops (power + signal in one 4-core cable).
Commercial & institutional buildings
offices, hospitals, schools, hotels, shopping centres, airports and industrial plants.
Why Buy 4 Core fire Alarm Cable From Doublewin?
4-Core Power + Signal
Two conductors for 24 V DC power, two for the addressable loop - a single cable run delivers both to every smoke detector, call point and sounder.
Tinned Copper Conductors
Tinned plating resists corrosion in damp or condensing environments, extends cable lifetime and ensures reliable signal contact for decades.
LSZH Low-Smoke Zero-Halogen
When the fire alarm cable itself is the source of the fire, LSZH burns with minimal smoke and no toxic halogens - essential for tunnels, hospitals and high-rises.
Shielded or Unshielded
Aluminium-foil (FL) or braided-copper (SB) shielding on request for installations near power cables, motors or radio-frequency equipment.
CPR & EN 50200 Certified
CPR EN 50575 B2ca/Cca/Dca for fire performance, s1/d0 for smoke and halogen levels, EN 50200 for fire resistance up to 950 °C for 90 minutes.
Factory-Direct OEM
We extrude and test every reel ourselves. Your brand print, custom colour and packaging from 10,000 m - no middleman.
Choose Doublewin for Bulk & OEM
We supply 4 core fire alarm cable in bulk for fire safety distributors, system integrators, electrical contractors and OEM brands. Custom jacket colours, shielding, CPR class, print legends and packaging are available from 10,000 m. Send us your project specification or sample and we will confirm feasibility within 5 working days.
