Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of 2 core fire alarm cable in China. If you're going to wholesale bulk 2 core fire alarm cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.

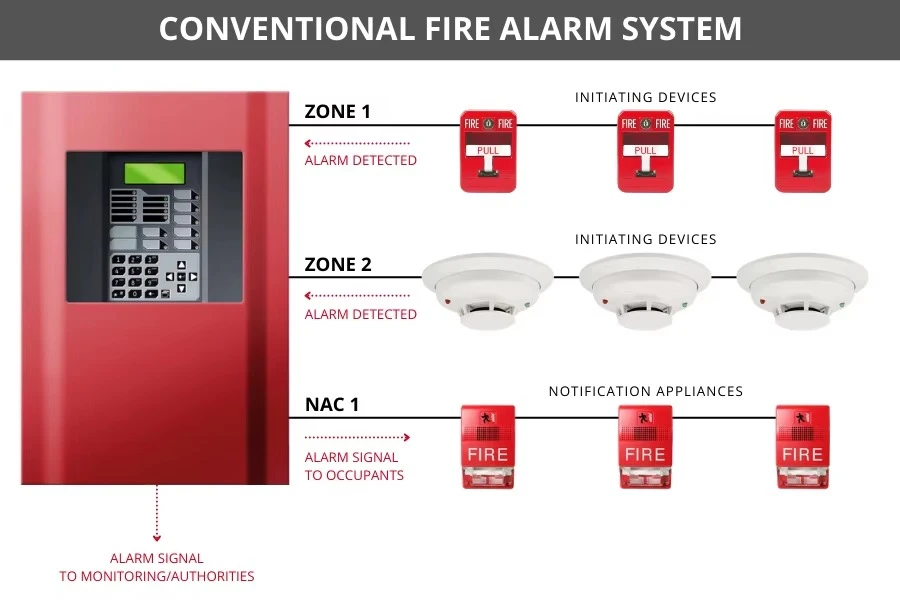

A 2 core fire alarm cable is a two-conductor cable used to connect fire detection and alarm devices - smoke detectors, heat detectors, manual call points, sounders and addressable loop devices - to a fire alarm control panel. The two cores carry the loop signal and 24 V DC power (or the return path). A fire-resistant 2 core cable maintains circuit integrity for 30 to 120 minutes under fire (BS EN 50200 PH30 – PH120), so the alarm system continues to operate while occupants evacuate.
•Common sizes：2x1.0 mm², 2x1.5 mm², 2 x2.5 mm² (18 / 16 / 14 AWG)

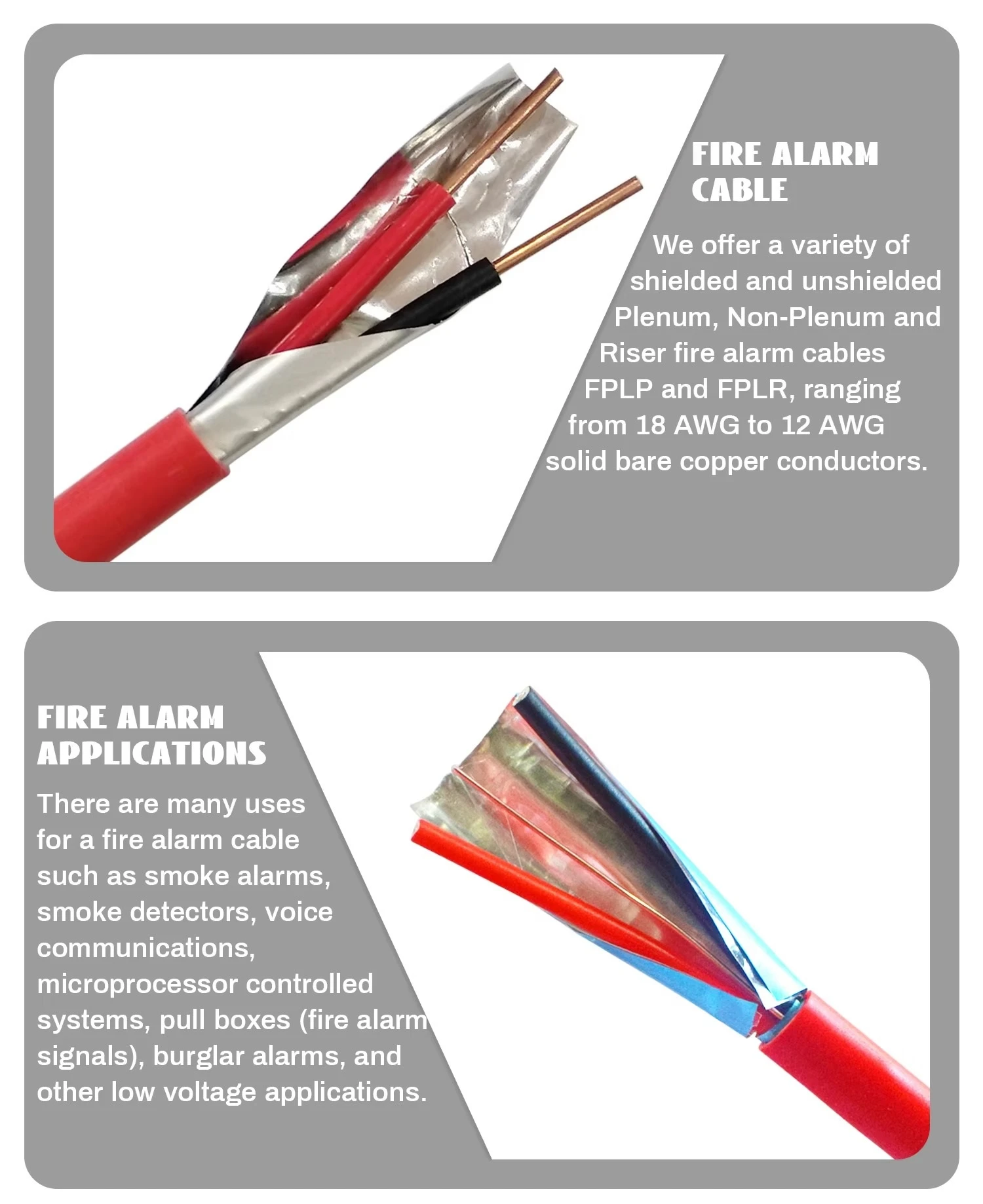

•Conductor：Plain annealed copper, solid (Class 1) or stranded (Class 2)
•Fire standard：BS EN 50200 (PH30–PH120), BS 7629-1, BS 6387 CWZ, IEC 60331, UL 1424 FPLR
•Sheath：LSZH (low smoke zero halogen) - red, orange or white

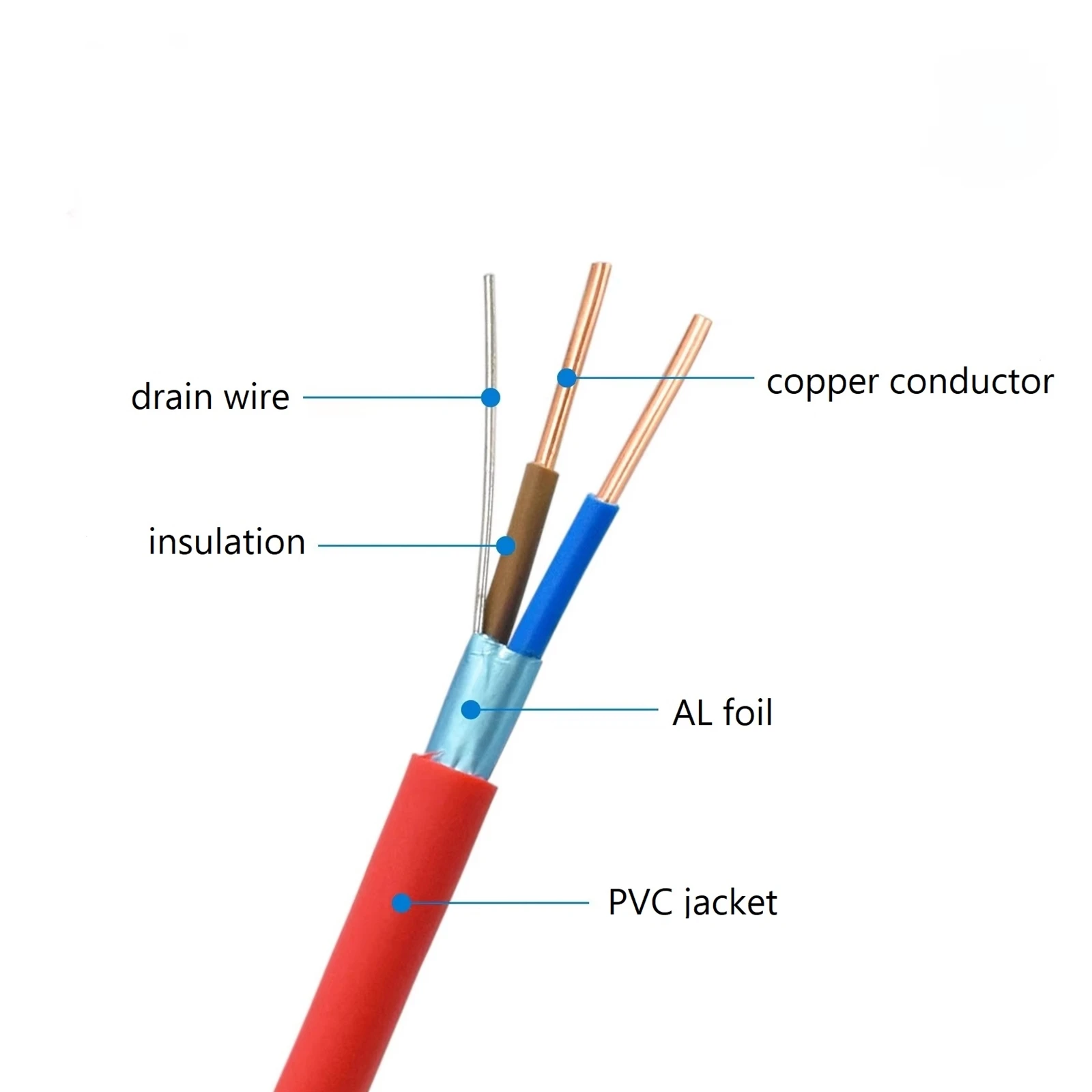

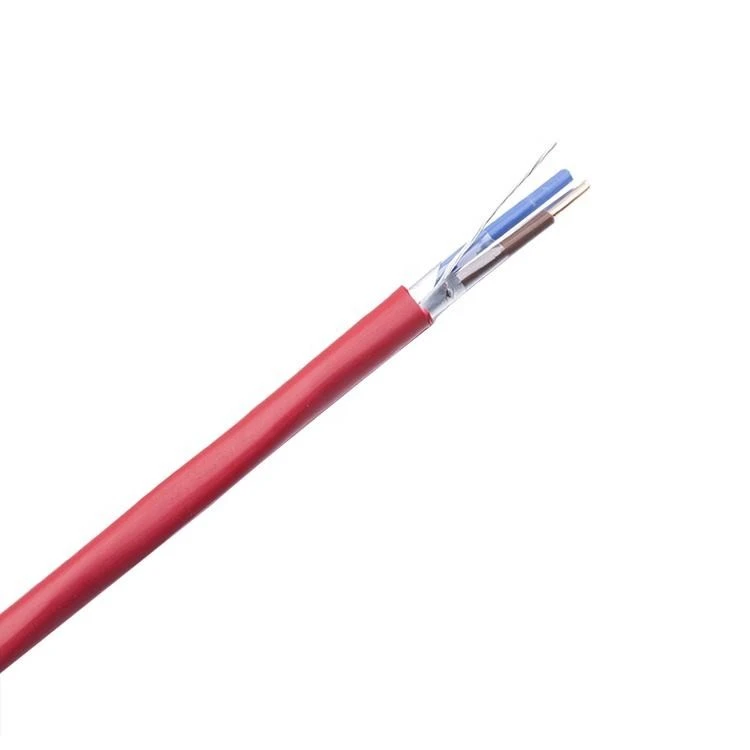

•Options: Unshielded (2C) or shielded (FTP, foil screen + drain wire)
•Main uses：Fire detection loops, addressable alarm systems, voice alarm, emergency lighting
2 Core Fire Alarm Cable Technical Specifications
Manufactured at our Haiyan, Zhejiang factory complying with ISO 9001:2015 standards. This 4 core fire alarm cable supports custom jacket materials, colors and construction to meet different fire safety project specifications.
| Product Name | 2 Core Fire Alarm Cable | ||
|---|---|---|---|
|
PH30 / PH60 / PH120 per EN 50200; IEC 60331; BS 6387 CWZ | ||
| CPR EN 50575 Class | Cca(standard); B2ca (on request) | ||
| Core Counts | 2 core | ||
| Conductor Sizes | 2*0.75mm²/ 1.0mm²/ 1.5mm²/ 2.5mm²/4mm² | ||
| Conductor Material | Stranded/ Solid bare copper | ||

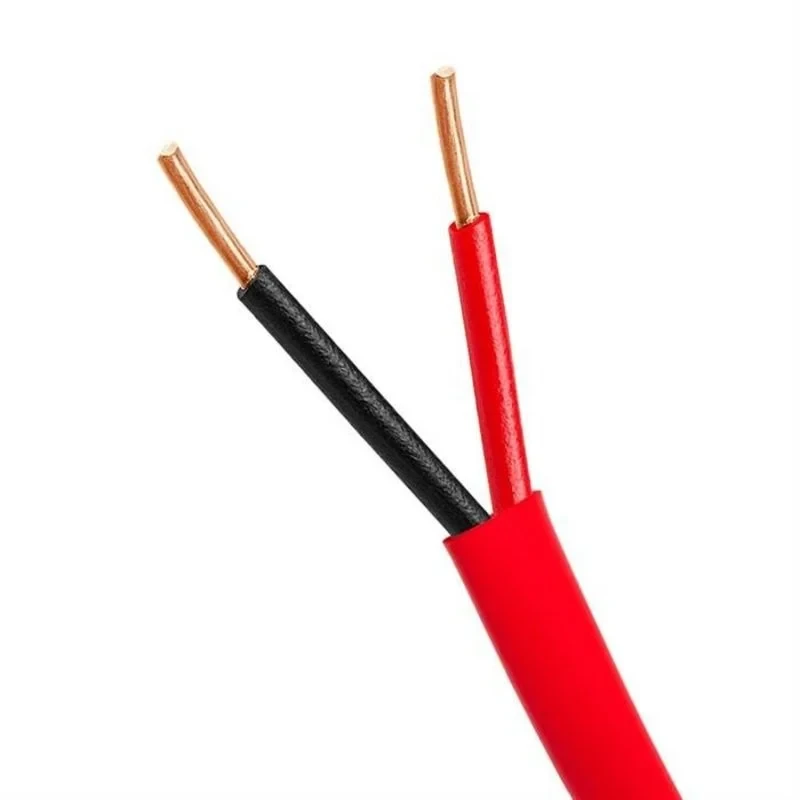

| Insulation Color | Red/Black (2-core); BS EN colour code for multi-core | ||
| Insulation Material | PVC or LSZH | ||

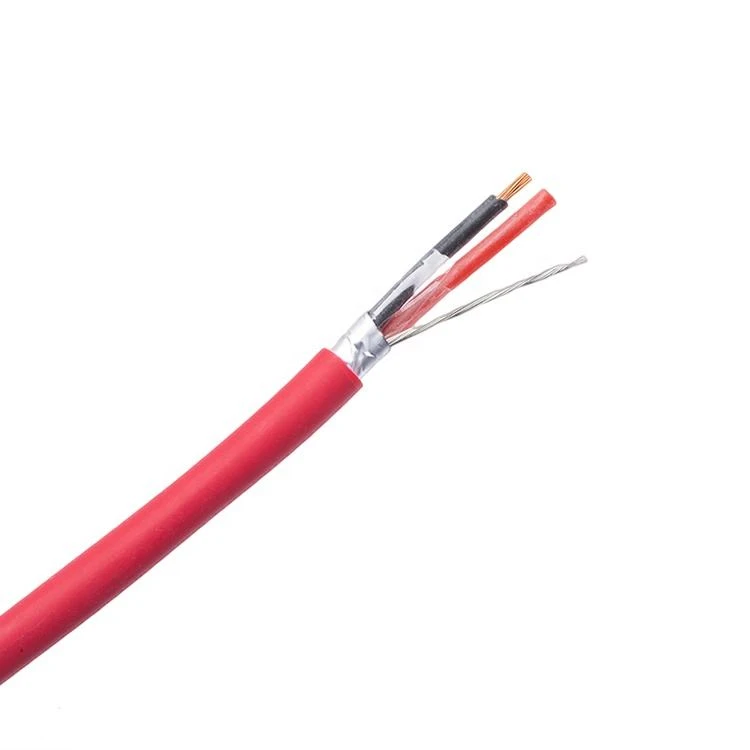

| Shielding | Al foil + drain wire, or tinned CU braid | ||
| Drain Wire | Tinned copper | ||
| Jacket color | Red (standard); white, orange, custom on request | ||
| Jacket Material | PVC or LSZH,flame retardant | ||
| Rated Voltage | 300/500 V | ||
| Temperature Range | -15°C to +70°C (PVC); up to +90°C (LSZH) | ||
| Compliance | EN 50200, IEC 60331, BS6387 CPR EN 50575, CE, RoHS | ||

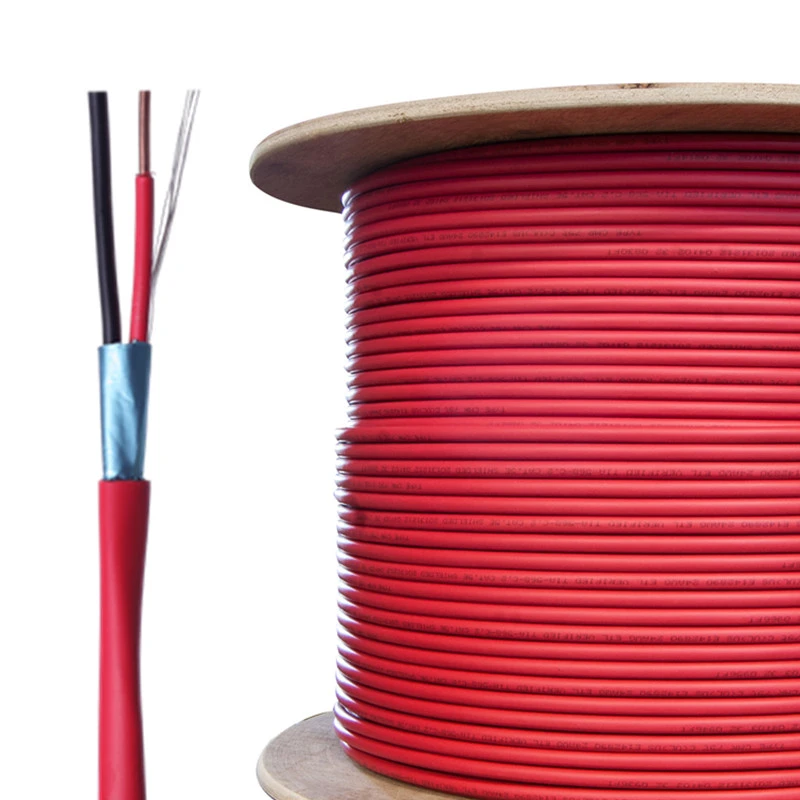

| Packing | 100 m / 305 m (1000 ft) / 500 m per reel or box |
| Conductor Nominal Cross-section | Conductor construction | Insulation Nominal thickness | Max.Diameter of cable | Max.d.c resistance at 20℃ | Min.Insulation resistance at 70℃ | Current rating of cable in air at 40℃ | Approx weight of cable |
|
mm2 |
mm |
mm |
mm |
Ω/km |
mΩ.km |
A |
kg/km |
|
2*0.75 |
2*1/0.97 |
0.6 |
4.6*7.1 |
24.5 |
0.012 |
12 |
39.6 |
|
2*1.0 |
2*1/1.13 |
0.6 |
4.8*7.4 |
18.1 |
0.011 |
14 |
46.2 |
|
2*1.5 |
2*1/1.38 |
0.7 |
5.3*8.5 |
12.1 |
0.011 |
18 |
61.8 |
|
2*2.5 |
2*1/1.78 |
0.8 |
6.2*10.1 |
7.41 |
0.010 |
25 |
92.2 |
|
2*4 |
2*1/2.22 |
0.8 |
6.7*11.1 |
4.61 |
0.0085 |
33 |
125.4 |
|
2*4 |
2*7/0.85 |
0.8 |
6.9*11.5 |
4.61 |
0.0080 |
33 |
133.1 |
|
2*6 |
2*1/2.76 |
0.8 |
7.5*12.5 |
3.08 |
0.0070 |
42 |
172.6 |
|
2*6 |
2*7/1.04 |
0.8 |
7.8*13.0 |
3.08 |
0.0065 |
42 |
182.5 |
|
3*0.75 |
3*1/0.97 |
0.6 |
4.6*9.6 |
24.5 |
0.012 |
10 |
55.8 |
|
3*1.0 |
3*1/1.13 |
0.6 |
4.8*10.1 |
18.1 |
0.011 |
12 |
65.5 |
|
3*1.5 |
3*1/1.38 |
0.7 |
5.3*11.7 |
12.1 |
0.011 |
15 |
88.5 |
|
3*2.5 |
3*1/1.78 |
0.8 |
6.2*14.0 |
7.41 |
0.010 |
21 |
133.0 |
|
3*4 |
3*1/2.22 |
0.8 |
7.0*15.8 |
4.61 |
0.0085 |
28 |
197.2 |
|
3*4 |
3*7/0.85 |
0.8 |
7.1*16.3 |
4.61 |
0.0080 |
28 |
198.7 |
|
3*6 |
3*1/2.76 |
0.8 |
7.5*17.5 |
3.08 |
0.0070 |
36 |
251.8 |
|
3*6 |
3*7/1.04 |
0.8 |
7.8*18.2 |
3.08 |
0.0065 |
36 |
266.3 |
Applications of 2 Core Fire Alarm Cable
2 core fire alarm cable is specified wherever a fire alarm circuit needs exactly one pair - a signal pair or a power pair.

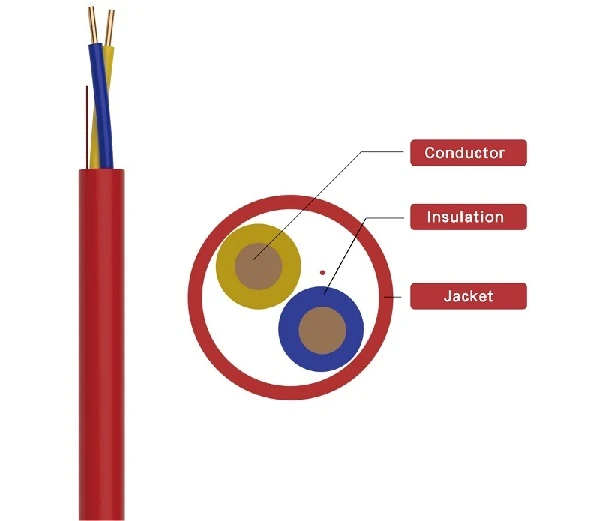

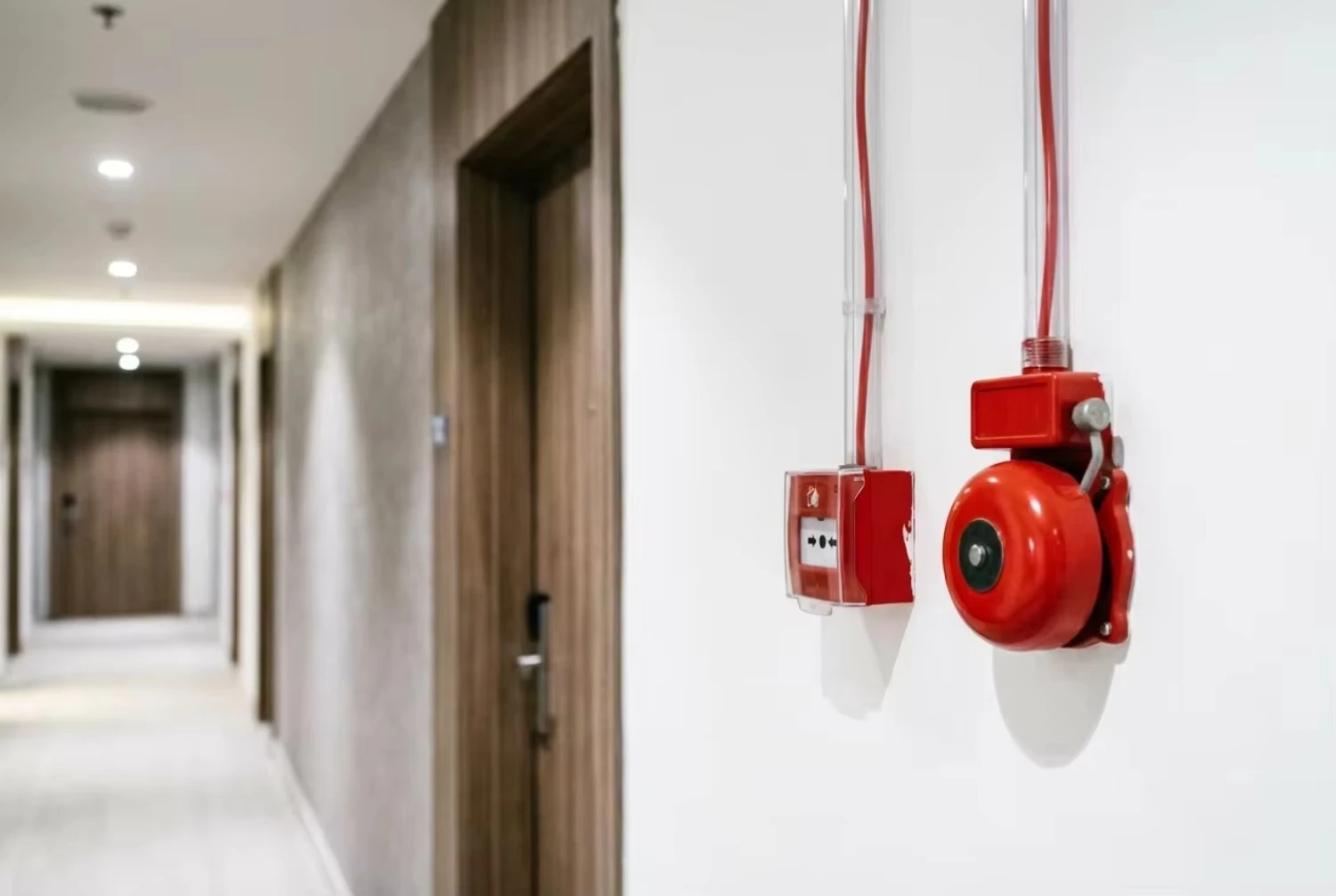

Sounder Circuits
Panel to sounder, strobe, bell or beacon
Manual Call Points
Single call point on its own pair
Single Detector Zones
Detector zone where no power pair is needed
Addressable Loop Pair
Loop wired as a single pair per device spur
Evacuation / PA
Sounder/PA circuit with fire-resistant grade
Smoke Extraction
Fire-resistant PH60/120 for circuits that must survive
Jacket Grade Selection Guide
PVC: General indoor, non-life-safety signal wiring.
LSZH: Public buildings, schools, hospitals - low smoke, zero halogen.
Fire-resistant PH30: Sounder circuits, 30 min integrity.
Fire-resistant PH60/120: Evacuation, lift, smoke extraction - 60–120 min.

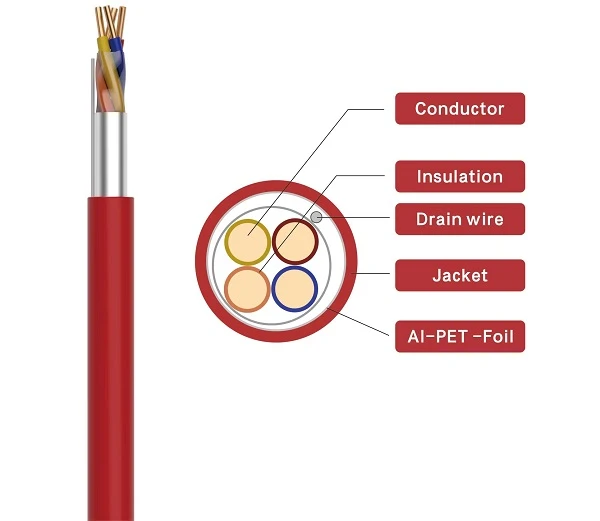

2 Core vs 4 Core Fire Alarm Cable - Which One to Specify
The core count is decided by how many conductors the field device needs, not by habit. The table below is the rule our OEM customers use on site.
When the circuit is single-function
• Dedicated sounder / strobe / bell circuit
• Single detector zone or call point
• Addressable loop wired as a single pair
• Signal-only or power-only runs
• Separate containment for signal and sounder
Cheaper, lighter, faster to pull - use it whenever two terminals is all the device has.
When the circuit is combined
• Addressable loop + sounder output on one route
• Conventional zone + sounder on one route
• Detector zone + remote indicator
• Sounder circuit + tamper/monitor pair
• Single containment for both functions
One pull carries both functions - use it when the device needs four terminals fed.
Quality Control & Testing
Because 2 core fire alarm cable is a life-safety product, every reel is 100% tested before shipment. We test conductor resistance per IEC 60228, insulation resistance between the two cores, high-voltage withstand at 1500 V AC, and on fire-resistant grades we run the IEC 60331 fire-integrity test at the rated minutes (30/60/120). A retained sample from each batch and a CPR Declaration of Performance support full traceability.
HV Withstand Test:1500 V AC between cores and to shield.
Conductor Resistance: IEC 60228 on both cores.
Insulation Resistance:Core-to-core and core-to-shield.
IEC 60331 Fire Test:Circuit integrity 30/60/120 min (FR grade).
CPR Fire Test: EN 50575 class verified per batch.
Jacket Print Check:"FIRE ALARM" ID, gauge, metre mark verified.
Conductor Resistance
IEC 60228 on every core - critical for loop accuracy.
Core-to-Core Insulation
Resistance tested between every core pair.
Batch Traceability
Sample retained per lot.
OEM / ODM Customization
As the manufacturer, we build custom 2 core fire alarm cable to your specification - not just from a catalogue. Typical OEM options include:
1.Conductor Size: 0.5 to 2.5 mm² per BS 5839 / EN 54.
2. Jacket Grade: PVC, LSZH, or fire-resistant PH30/60/120.
3. Jacket Colour: Red (standard), white, or custom.
4. Shield & Drain: Unscreened, foil, or braid screen.
5. Core Layout: Twisted pair or parallel.
6. Private Label: Jacket print: brand, "FIRE ALARM", metre marks.
MOQ:10000 m for fire-resistant or custom print. Samples 5–7 working days.
