Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of in-wall security alarm cable in China. If you're going to wholesale bulk in-wall security alarm cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.

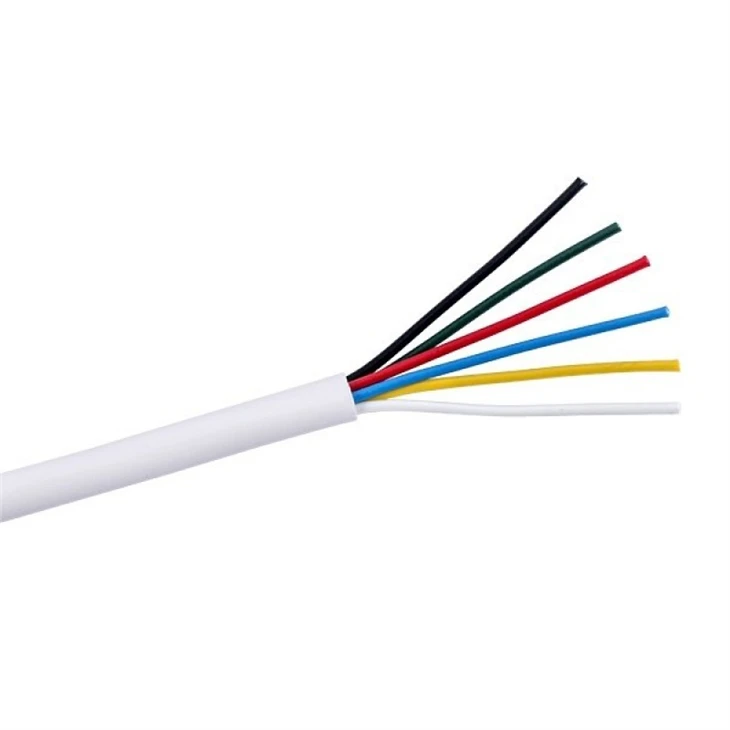

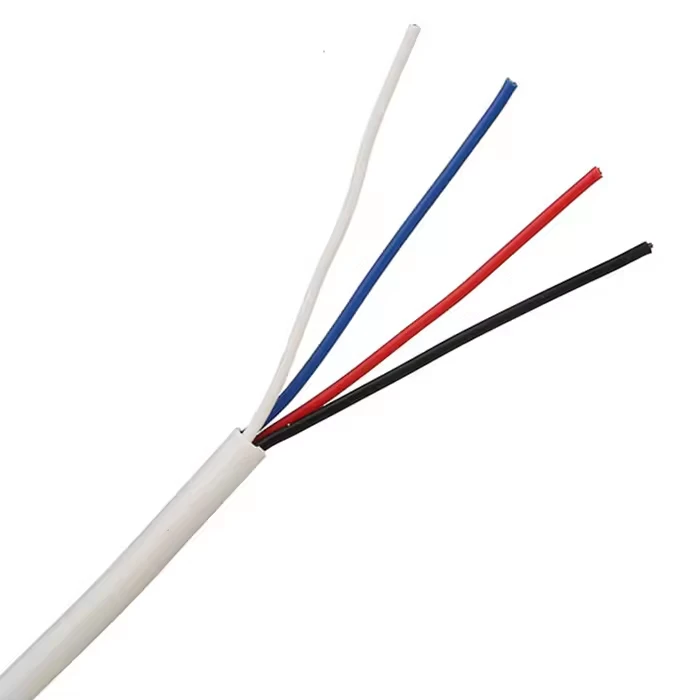

In-wall security alarm cable is specially manufactured for security alarm and signal circuits installed inside wall cavities, behind wall panels, or within approved conduits. This cable consists of multiple insulated conductors. Foil shielding or braided shielding is integrated into the cable structure if specified by your security system design.
Cable selection must strictly follow these criteria: installation type, conductor gauge, electrical performance, operating environment, fire safety standards and local building codes. For concealed wiring projects, you must verify the cable carries official certification for your target installation environment. General-purpose alarm cables cannot be used for in-wall, plenum, fire alarm or concealed-space wiring by default.
As a professional independent cable manufacturer, we can assess your full project specifications and recommend a cable structure that matches both your project requirements and our production capacity.
• 2 to 30 core
• Shielded or unscreened
• 0.20–1.5 mm²
• PVC or LSZH jacket
• CPR EN 50575
In-wall Security Alarm Cable Technical Data
All In-wall security alarm cables are manufactured within our factory under ISO 9001:2015 quality management system. We conduct full electrical, dimensional and fire performance tests before shipment. Customised conductor size, sheath material and marking are available to satisfy your regional project standards and tender requirements.
| Product Name | In-wall Alarm Cable | |
|---|---|---|
| Conductor Cores | 2/4/6/8/10/12/14/16/18/20/24/30 cores | |
| Conductor Material | BC, TC, CCA | |
| Conductor Construction | Strander bare or tinned copper, IEC 60228 Class 5 (flexible) | |
| Conductor Size | 0.20, 0.22, 0.25, 0.35, 0.50, 0.75, 1.0, 1.5 mm² or AWG | |
| Insulation Material | PVC (70 °C) or LSZH | |
| Shielding(optional) | Unshielded, Al foil + drain wire, tinned Cu braid (≥85%), or foil + braid | |
| Outer Jacket | PVC (–5 to +70 °C) or LSZH (–20 to +70 °C) | |
| Rated Voltage | 300/500 V | |
| Flame performance | EN 50575 (CPR) Eca–B2ca per jacket; IEC 60332-1-2 | |
| Standards | BS 4737, BS 5839, EN 50173, IEC 60228, EN 50575 | |
| Approvals |
|
|
| Packing | 100 m / 305 m / 500 m per reel or box |
Core Counts & Size Matrix
Below are the In-wall security alarm cable configurations. Custom core counts, mixed conductor sizes and flat constructions are available on OEM order.
| Conductor Cores | Conductor Size | Shielding (Optional) | Typical In-Wall Use |
| 2 core | 0.25 – 1.5 mm² | Unshielded | Siren / sounder power, single zone |
| 4 core | 0.22 mm² | Unshielded / Shielded | PIR sensor, door contact in-wall run |
| 6 core | 0.22 mm² | Unshielded / Shielded | Keypad, multi-sensor zone |
| 8 core | 0.22 mm² | Unshielded / Shielded | Keypad with spares, combined sensor+power |
| 10 – 12 core | 0.22 mm² | Shielded / Braid | Zone junction trunk to panel |
| 16 – 24 core | 0.20 – 0.22 mm² | Braid | Multi-zone riser, panel trunk |
| 30 core | 0.20 mm² | Braid | Building riser, multi-floor trunk |
In-wall Security Alarm Cable Features
Reliable copper conductor delivers stable signal transmission for security alarm systems.
Shielding Options

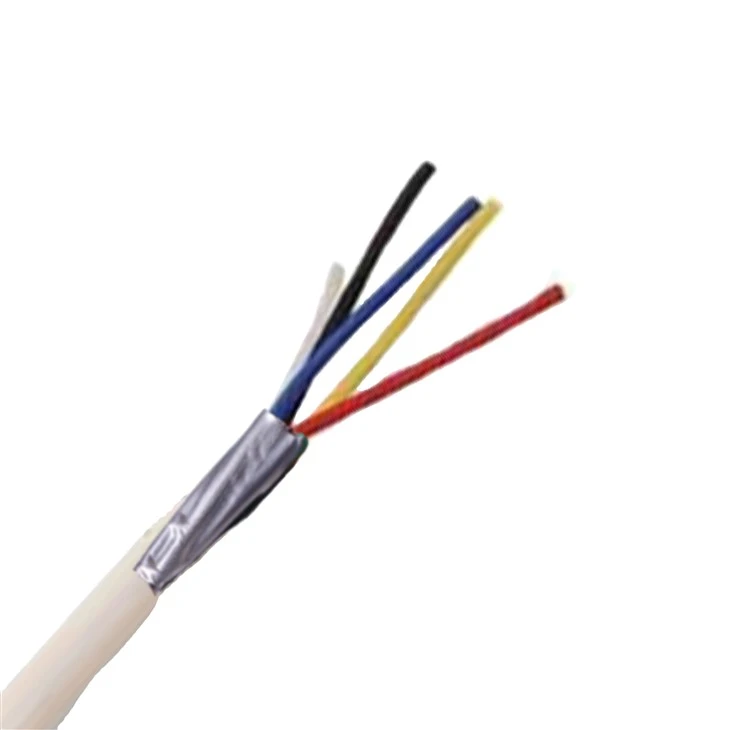

Shielded versions are available for projects requiring electromagnetic interference suppression. We supply foil shield, braided shield, and drain wire constructions, manufactured to your approved cable design.
01
Multiple Conductor Configurations
Custom conductor setups are available. We tailor the cable based on your requirements: conductor count, conductor gauge, insulation type and core color coding.
02
Insulation and Jacket Materials
PVC and other qualified materials can be selected to meet your requirements for mechanical performance, operating environment and relevant industry standards.
03
Custom Cable Specifications
We accept custom orders for conductor material, conductor gauge, shielding structure, jacket material, cable marking, packaging and cut length. All custom solutions are subject to our manufacturing feasibility assessment.
04

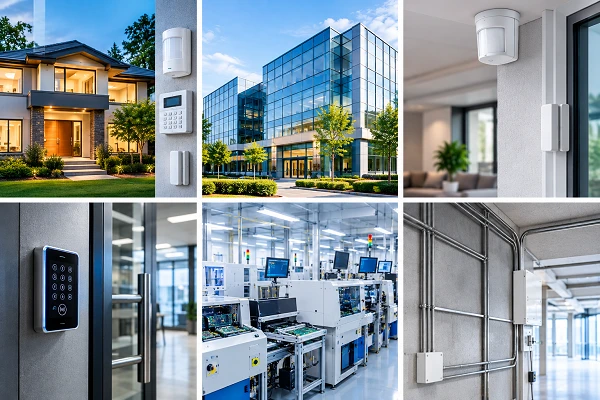

Applications of In-wall Security Alarm Cable
Residential Security Systems For alarm sensors, control panels and other security devices deployed in residential buildings.
Commercial Building Security For concealed signal wiring between security devices and matching control systems in commercial premises.
Commercial Security Installations For commercial security projects, where the cable construction fully satisfies specified electrical and installation standards.
Intrusion Detection Systems For motion detectors, door contacts, window sensors and alarm control hardware, when the cable matches system technical requirements.
Access Control Systems For signal and control wiring within access control systems, complying with conductor layout and electrical demands of connected devices.
Security Equipment OEM Manufacturing For OEM manufacturers integrating alarm cables into security devices, control panels and electronic assemblies.
Low-voltage Signal Wiring For low-voltage signal applications, provided the selected cable meets all installation and electrical specifications.
Choosing your cable manufacturing partner goes beyond unit price comparison. Buyers gain access to professional technical support, standardized documented quality procedures, stable production scheduling and transparent communication.
Direct Factory Communication
Discuss cable specifications, conductor layouts, insulation types, shielding structures, jacket materials and packaging directly with our in-house engineering & production team.
Custom Manufacturing Support
We evaluate your technical drawings, datasheets and reference samples to confirm producibility of your required cable design. All production workflows follow your approved cable construction and our factory equipment capacity.
Production Process Control
Based on your selected cable design, our production workflow covers conductor processing, insulation extrusion, core stranding, shielding application and outer jacket extrusion.
Quality Inspection and Testing
We implement project-specific inspection routines, including conductor resistance testing, dimensional verification, insulation integrity tests, shield continuity checks and other agreed performance assessments.
OEM and Private-label Services
For eligible projects, we provide custom cable marking, product identification, labeling and packaging services in line with your requirements and our manufacturing capacity.
Custom Manufacturing Support
We evaluate your technical drawings, datasheets and reference samples to confirm if your requested cable construction can be manufactured with our production processes.

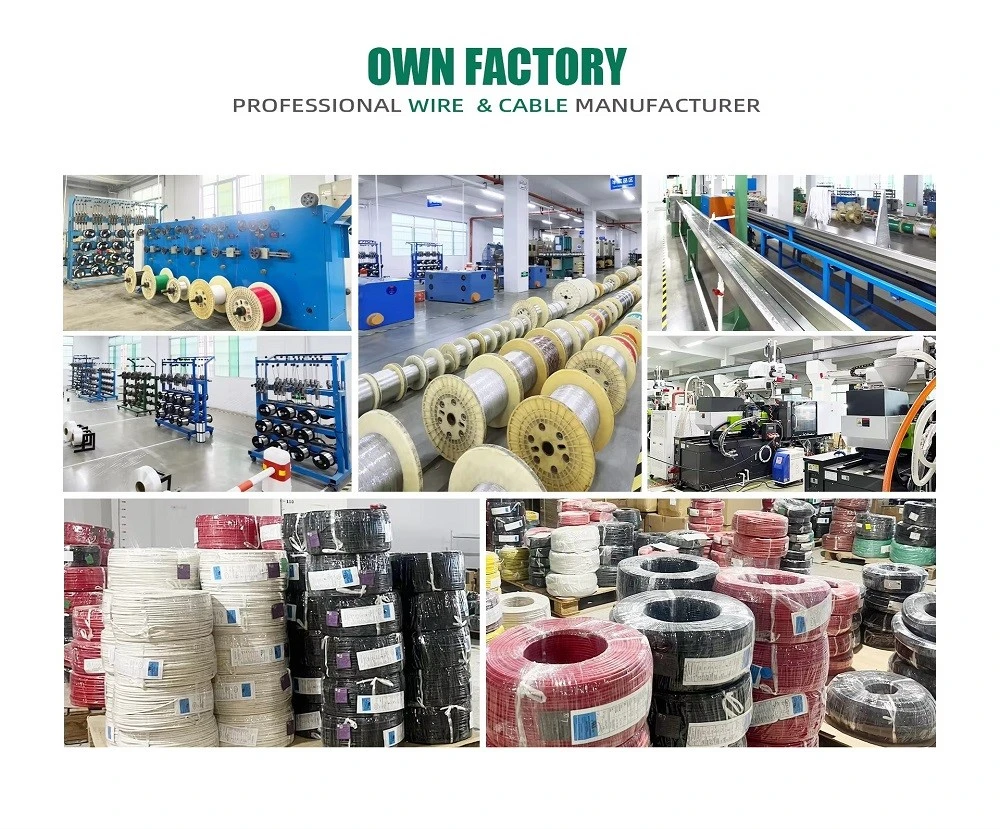

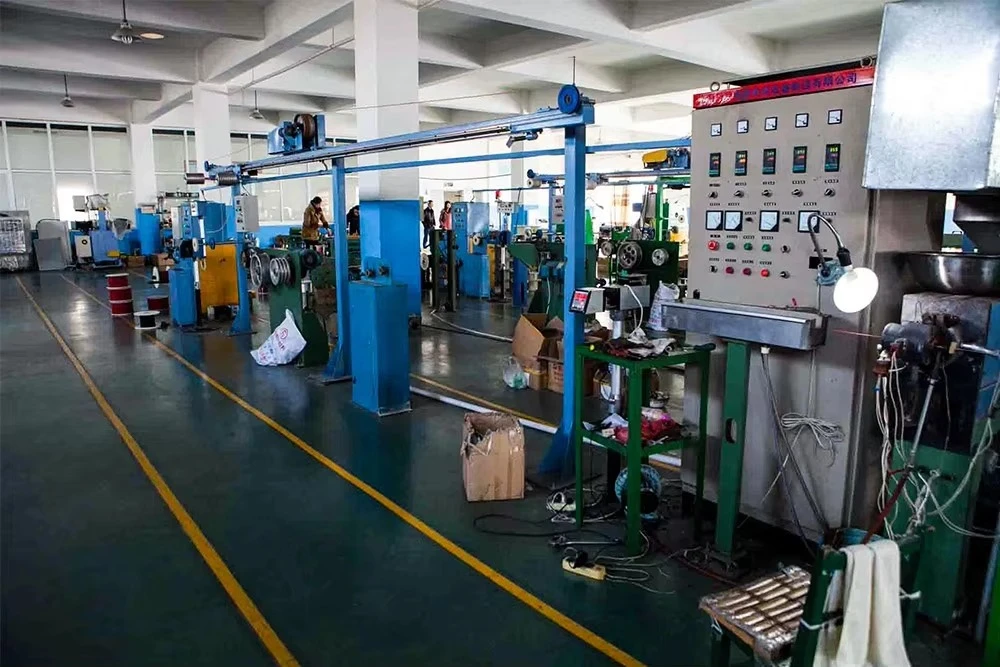

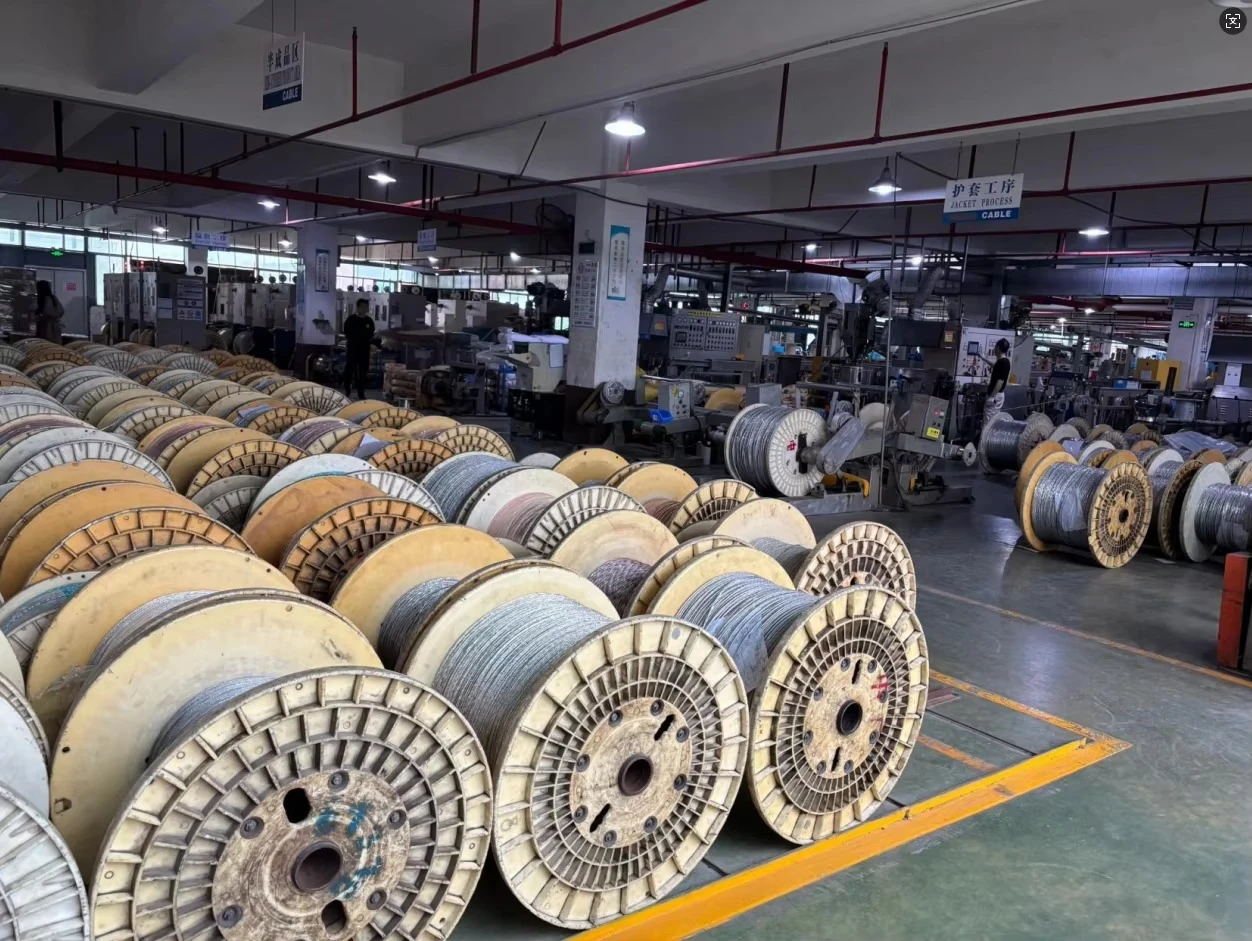

Our factory & quipment
We manufacture cable solutions for security equipment manufacturers, alarm system integrators, electrical distributors, importers, wholesalers, and OEM customers worldwide.
Our Manufacturing and Quality Control Workflow
A transparent production workflow clearly demonstrates how your cable specifications are turned into finished products..
Step 1: Technical Review
We review your requirements for conductor quantity, conductor gauge, insulation, shielding, jacket, installation environment and applicable standards.
Step 2: Material Verification
Raw materials are cross-checked against the approved product specification.
Step 3: Cable Production
Conductor processing, insulation extrusion, core assembly, shielding application and outer jacketing are executed strictly in accordance with your approved cable design.
Step 4: In-process inspection
We monitor key dimensions and production parameters following our formal control plan.
Step 5: Finished Cable Inspection
Full dimensional, electrical, visual and other specified performance tests are carried out on finished cables.
Step 6: Packaging and Shipment Preparation
We verify cable length, marking, order quantity, labels and packaging prior to delivery.
We provide authentic factory photos, production equipment details, product samples and quality records for buyers to evaluate our manufacturing capacity.
Start your intruder Alarm Cable Inquiry Now
