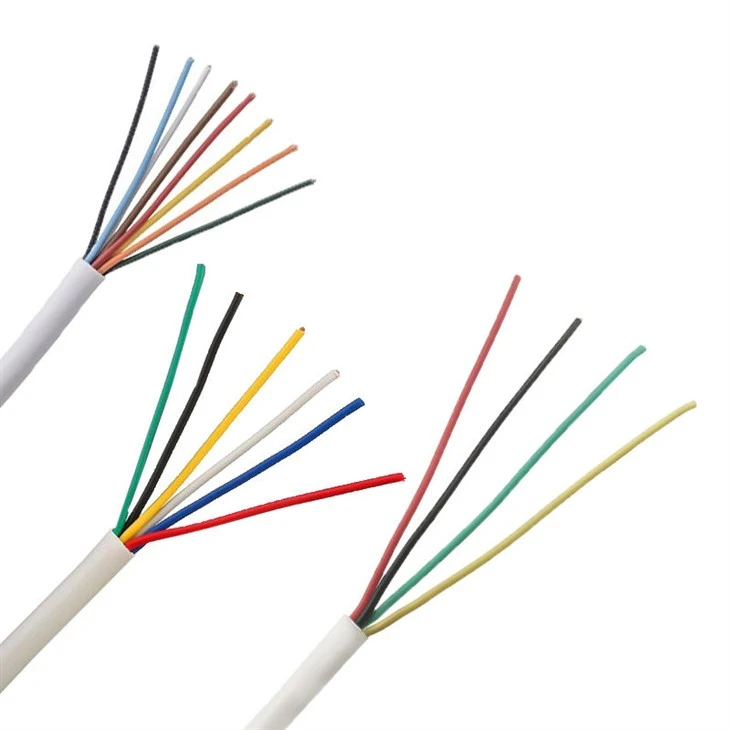

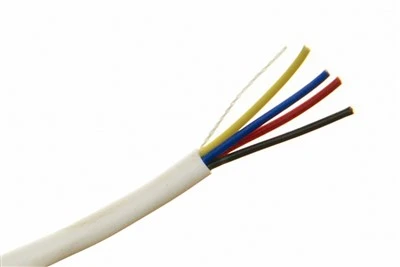

Multi Core Security Alarm Cable - 2 to 24 Cores for Multi-Zone & Addressable Systems

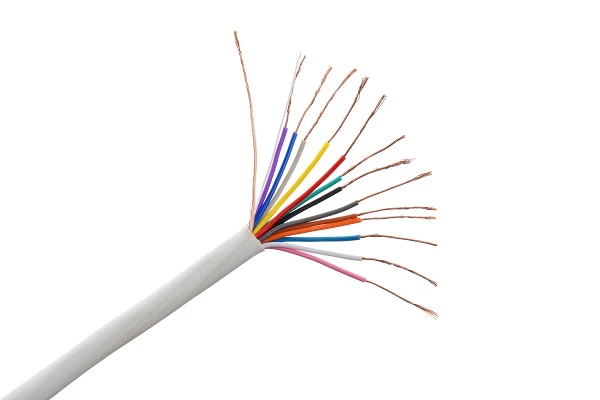

Multi core security alarm cable consolidates many low-voltage alarm circuits into a single jacket - from a 2-core sensor loop to a 24-core building riser. It is the standard for multi-zone intruder alarm panels, addressable fire alarm loops and large access control systems where pulling one cable is faster and tidier than pulling many. Each core is colour-coded to BS EN standards for fault-free termination, and the cable is available shielded or unshielded with PVC or LSZH jacket and CPR EN 50575 fire performance. Jiaxing Doublewin Cable Co., Ltd manufactures this cable in-house in Haiyan, Zhejiang, China and supplies it in bulk worldwide.
Multi core Security Alarm Cable Typical applications

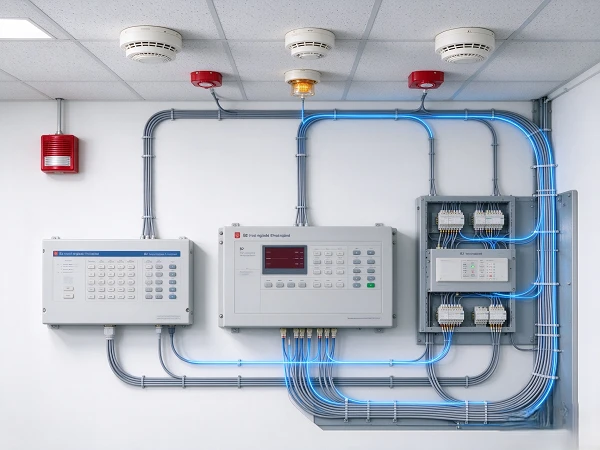

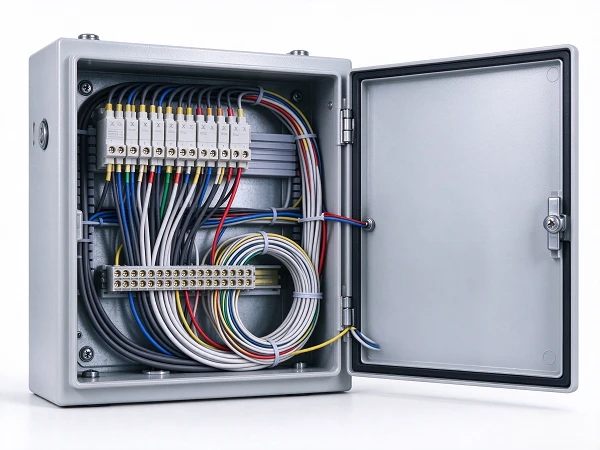

Multi-Zone Intruder Alarm
PIRs, contacts, keypads and sirens on one riser to a central panel.
Addressable Fire Alarm
Addressable detectors and modules on a multi-core loop with spares.

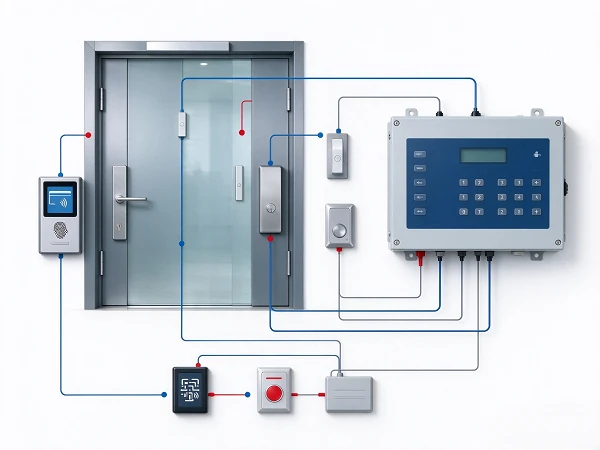

Large Access Control
Readers, locks, REX buttons and sensors consolidated per zone.

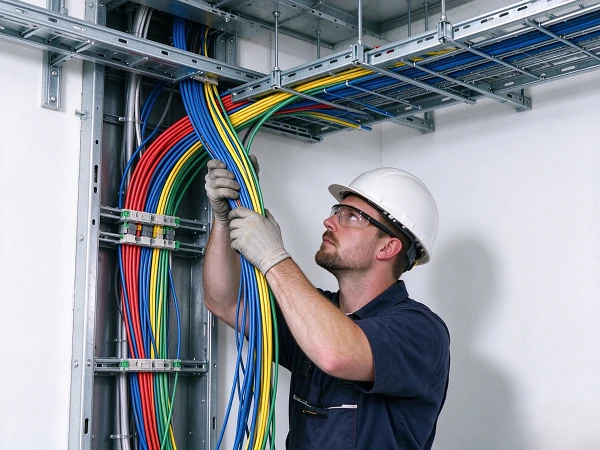

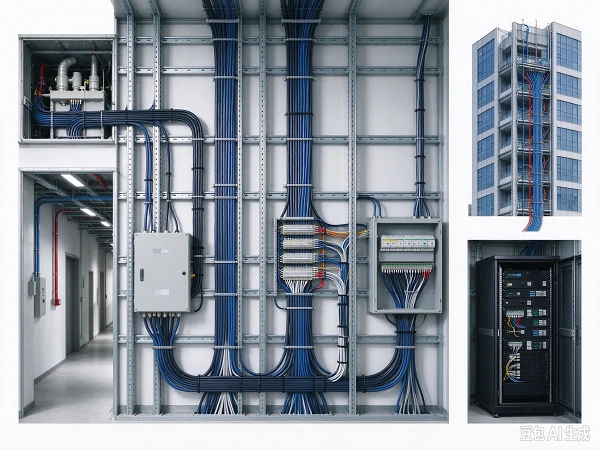

Building Backbone / Risers
Vertical runs in hotels, hospitals, campuses and high-rise buildings.
Why Installers Choose Multi Core Cable
For any system with more than a handful of devices, a single multi-conductor alarm cable beats pulling multiple 2-core cables. It reduces labour, keeps cable trays orderly, and leaves spare capacity for future expansion.
One Pull, Many Circuits
Dozens of cores share one jacket - install one cable instead of many.
Built-In Spare Cores
Order 1–2 extra cores for future sensors without re-pulling.

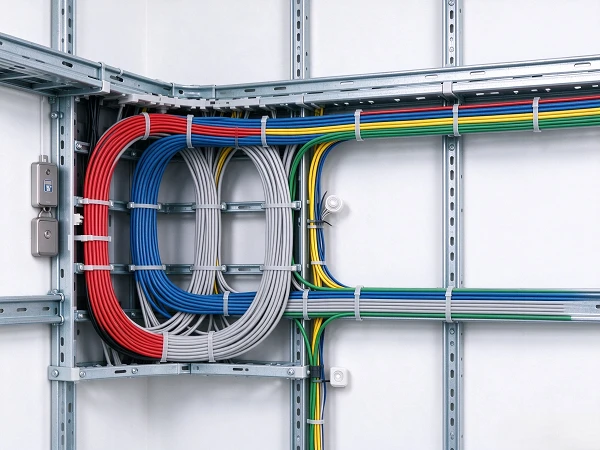

Neater Cable Management
Single jacket fills less conduit and is easier to trace and label.

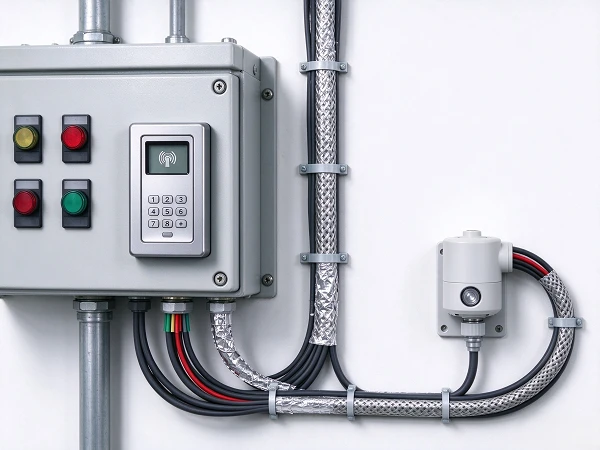

Shielding Optional

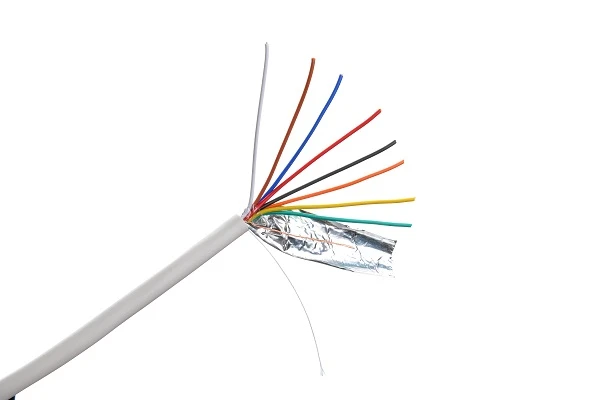

Foil + drain wire for runs near mains, motors or RF equipment.

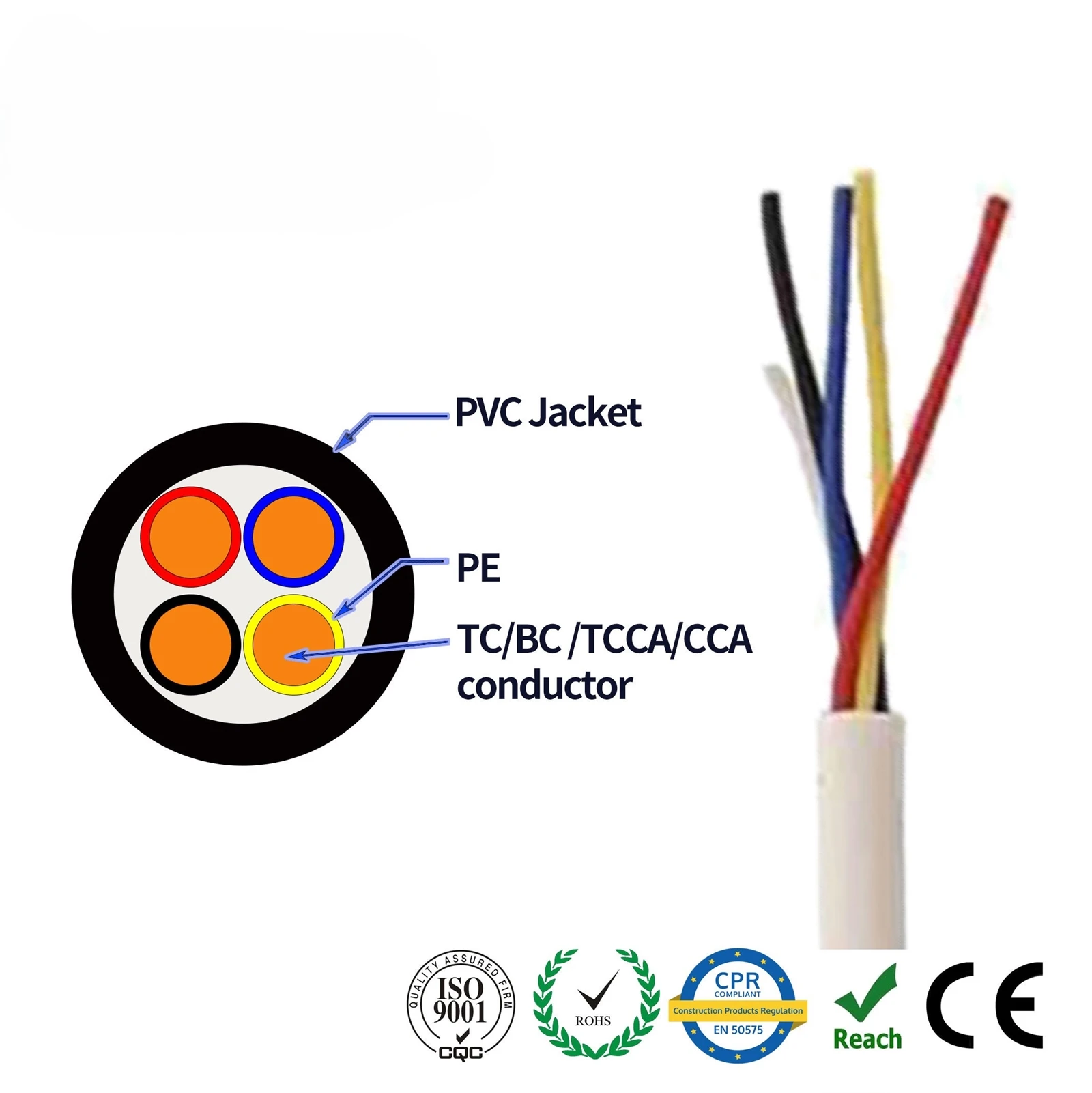

Multi Core Security Alarm Cable Conductor Sizes & Construction
| AWG | Available Cores | Contruction (per core) | Strand Ø | Nominal Area | Typical Use |
|
22AWG |
2-24C | 7 / 0.20 mm | 0.20 mm | 0.22 mm² | Short runs, addressable loops, sensors |
| 20AWG | 2-24C | 10 / 0.20 mm | 0.20 mm | 0.22 mm² | Standard alarm, access control, fire loops |
| 18AWG | 2-16C | 16 / 0.20 mm | 0.20 mm | 0.22 mm² | Longer runs, sirens, higher current |
| 16AWG | 2-8C | 26 / 0.20 mm | 0.20 mm | 0.22 mm² | Power runs, sounders, heavy loads |
Conductor: stranded bare copper (CCA on request). Stranding: Class 5 flexible. Custom sizes and core counts on request.
Standard Core Counts & Applications
| Core Count | Circuits | Typical Application | Shield |
| 2 Core | 1 | Single PIR, door contact, siren | U / F |
| 4 Core | 1-2 | Keypad, access reader, dual-tech sensor | U / F |
| 6 Core | 2–3 | Addressable device, multi-sensor zone | U / F |
| 8 Core | 3-4 | Intercom, access control with lock & REX | U / F |
| 10 Core | 4-5 | Multi-zone panel riser, video entry | U / F |
| 12 Core | 5-6 | Building riser, multi-zone backbone | U / F |
| 16 Core | 7-8 | Large multi-zone alarm, addressable fire loop | U / F |
| 20 Core | 9-10 | Commercial backbone, hotel riser | U / F |
| 22 Core | 11-12 | Campus, hospital, high-rise backbone | U / F |
U = unshielded, F = overall foil shield + drain wire. Custom core counts between 2 and 24 available on request.
Quality Control & Testing
Every reel is 100% tested before shipment. For multi-core cables we test insulation resistance between every pair of cores (not just adjacent cores), high-voltage withstand between all cores and sheath, and - on shielded versions - shield continuity. A sample of each batch is retained for full traceability. Third-party inspection (SGS, BV, TÜV) welcome.
Conductor Resistance
IEC 60228 verified on every core.
1
>>
Confirmation of orderCore-to-Core Insulation Resistance tested between every core pair.
2
>>
HV Withstand
Dielectric strength cores-to-sheath.
3
>>
Shield Continuity
Foil screen & drain wire on shielded.
4
>>
CPR Fire Test
EN 50575 class per batch.
5
>>
Batch Traceability
Sample retained per lot.
6

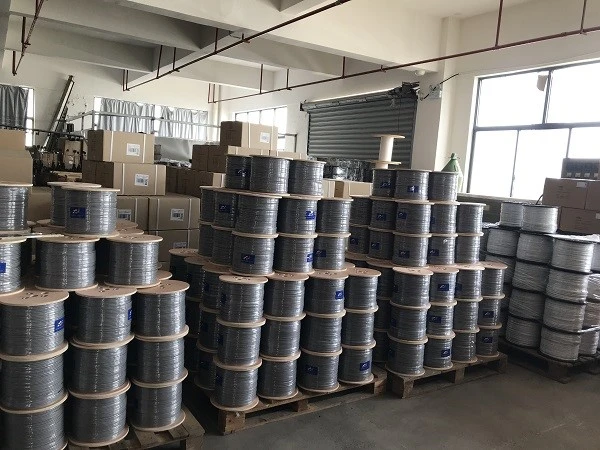

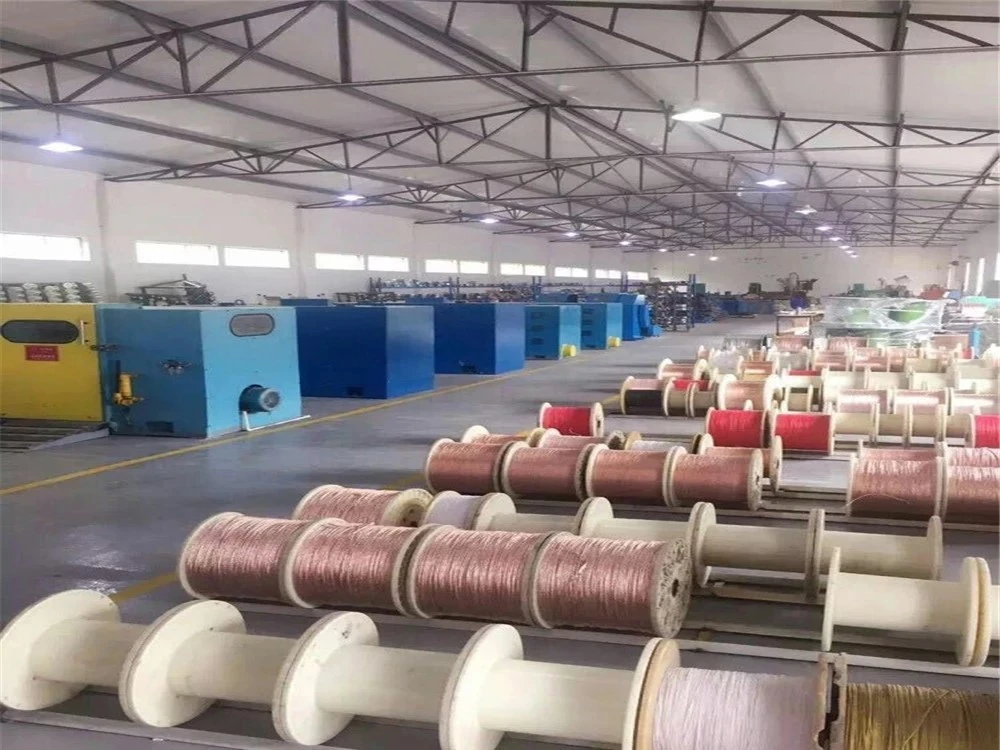

Direct From the Manufacturer - Jiaxing Doublewin Cable Co., Ltd
We are not a trading company. Founded as a copper conductor workshop in 1997 and incorporated in 2008, we draw conductors, extrude insulation, cable the cores, apply the sheath and test every reel in our Haiyan, Zhejiang factory. About 90% of our output is exported to Europe and South America.
-
5000m²Modern production site for audio cable fabrication
-
90%Our products are exported to customers around the world.
OEM / ODM Customisation
As an OEM multi core security alarm cable manufacturer, we build to your specification - core count, AWG, shielding, conductor colours, jacket material, print and packaging. Ideal for security brands and distributors needing private-label or project-specific bulk multi core alarm cable.
Core count (2–24 or custom)
AWG size (16/18/20/22) and stranding
Brand marking & sequential metre marking
Conductor material: copper or CCA
Conductor colour codes (BS EN or custom)

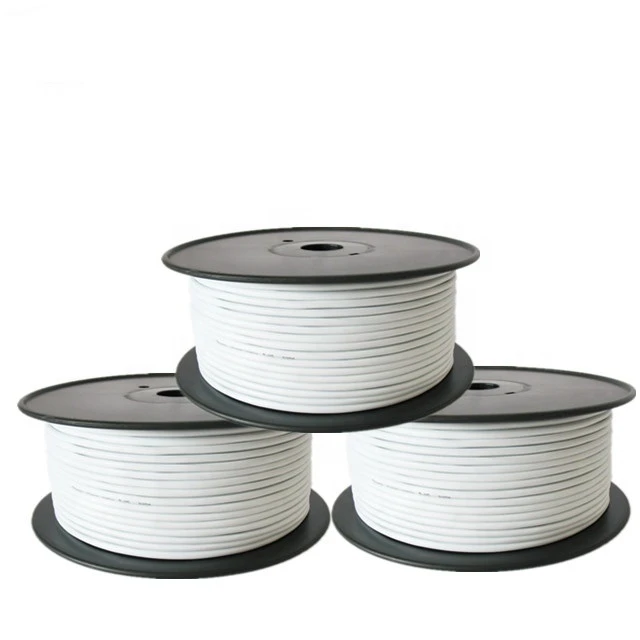

Reel / box packaging (or Custom)
Shielding: unshielded or foil + drain wire
Jacket material: PVC or LSZH; jacket colour
MOQ: 10,000 m
