Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of burglar alarm cable in China. If you're going to wholesale bulk burglar alarm cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.

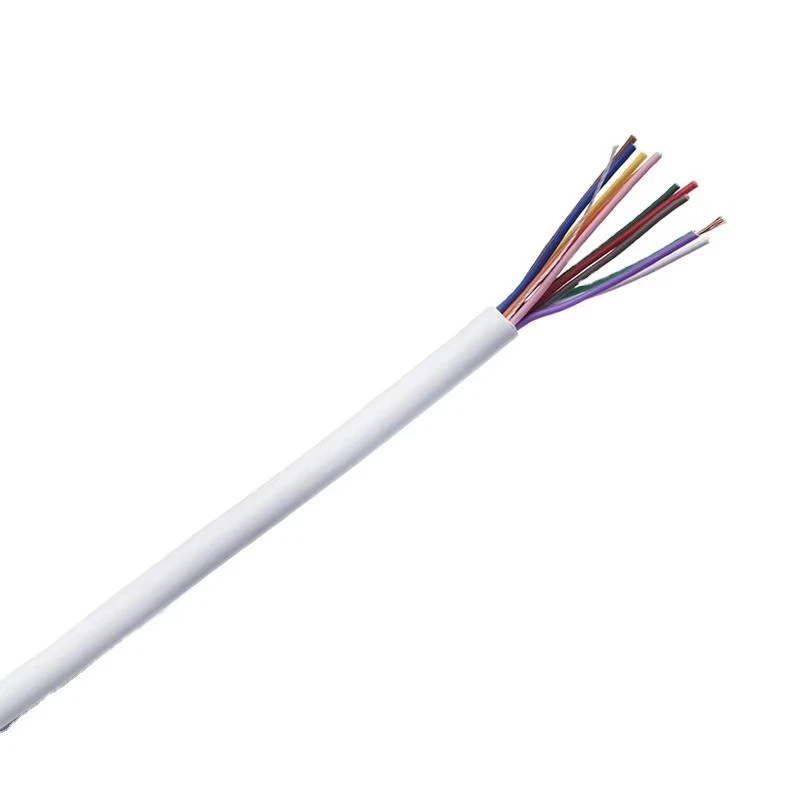

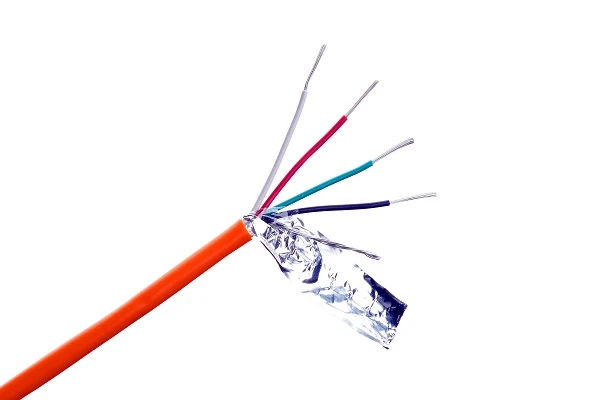

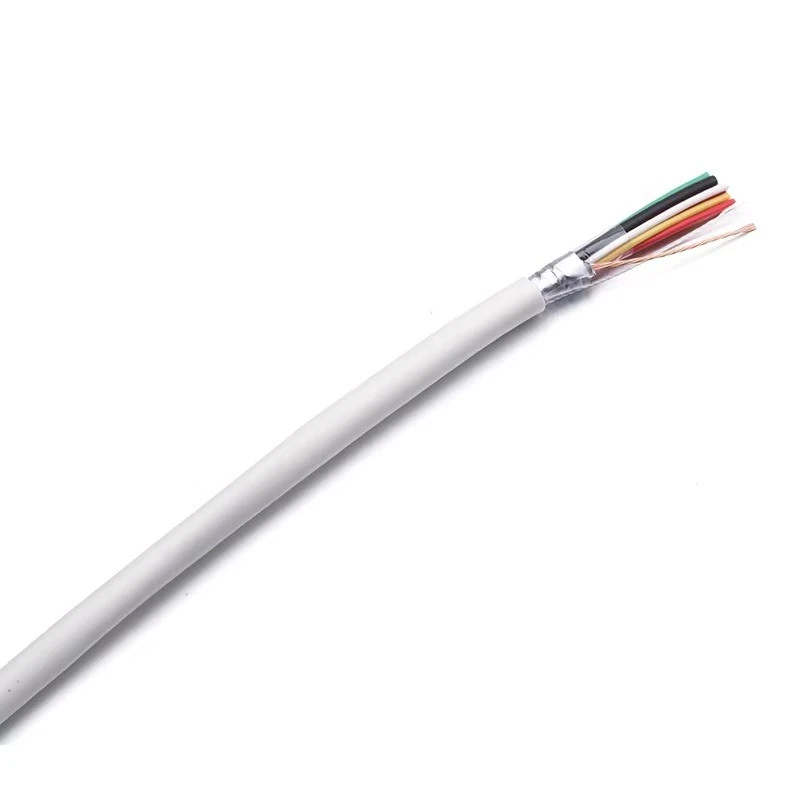

Burglar alarm cable is purpose-built low-voltage multi-core signal cable for intruder alarm systems. It transmits stable signals between alarm control panels, PIR motion sensors, door contacts, panic buttons and sounders. We supply both screened and unscreened burglar alarm cable options to match different site environments. Screened burglar alarm cable comes with aluminium foil shield plus drain wire, blocking EMI and RFI interference for installations near power cables, motors and industrial machinery. Unscreened burglar alarm cable offers cost-effective performance for standard indoor wiring with low electrical noise. We offer flexible core options from 2 cores up to 24 cores, with PVC or LSZH outer sheath, complying with CPR EN 50575 fire performance requirements.

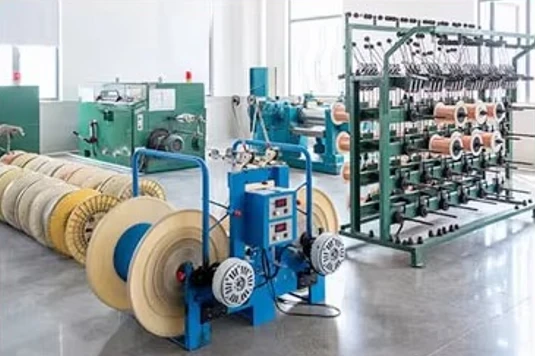

As a professional burglar alarm cable manufacturer based in Haiyan, Zhejiang, we complete full cable production in-house, from conductor stranding, insulation extrusion to final jacketing and testing. We support customised core count, sheath colour, cable printing and packaging for bulk export orders worldwide.
✓ Screened / Unscreened burglar alarm cable options
✓ 2–24 multi cores available
✓ PVC or LSZH outer sheath
✓CPR EN 50575 fire rated
✓Full in-house manufacturing & strict quality inspection
✓Custom specification for global project & wholesale orders

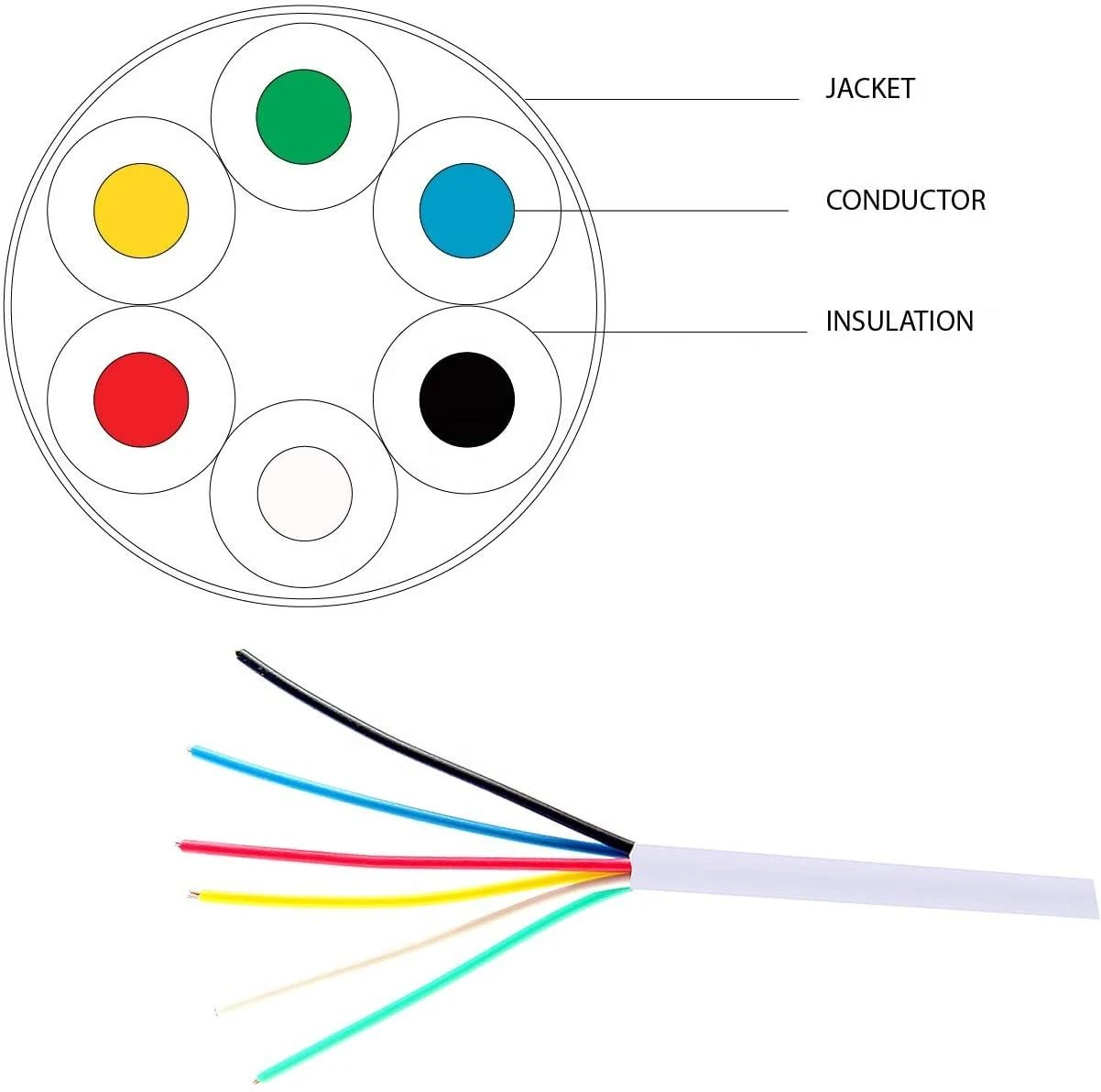

Burglar Alarm Cable Technical Data
All burglar alarm cables are manufactured within our factory under ISO 9001:2015 quality management system. We conduct full electrical, dimensional and fire performance tests before shipment. Customised conductor size, sheath material and marking are available to satisfy your regional project standards and tender requirements.
| Product Name | Burglar Alarm Cable |
|---|---|
| Conductor Cores | 2/4/6/8/10/12/14/16/18/20/24 cores (custom on request) |
| Conductor Material | CCA, TC, BC, TCCA |
| Conductor Construction | 7/0.20mm |
| Insulation Material | PVC |
| Wrap | PET |
| Shielding | Aluminium foil |
| Drain Wire | 7x0.20mm |
| Outer Jacket | Grey (standard); white, black, custom on request |
| Rated Voltage | 300/300 V |
| Compliance | CE, RoHS, CPR EN 50575 |
| Packing | 100 m / 305 m (1000 ft) / 500 m per reel or box |
Available Core Counts, Sizes & Shielding
| Conductor Cores | AWG | Shield Options | Typical Use |
| 2 Core | 22 / 20 / 18 AWG | Foil, Braid, Foil+Braid | Shielded sensor loop, siren |
| 4 Core | 22 / 20 / 18 AWG | Foil, Braid, Foil+Braid | Shielded keypad, access reader |
| 6 Core | 22 / 20 / 18 AWG | Foil, Braid, Foil+Braid | Addressable device, dual-tech sensor |
| 8 Core | 22 / 20 / 18 AWG | Foil, Braid, Foil+Braid | Intercom, access with lock & REX |
| 10–12 Core | 22 / 20 / 18 AWG | Foil, Braid, Foil+Braid | Multi-zone riser, video entry |
| 16–24 Core | 22 / 20 AWG | Foil, Foil+Braid | Building backbone, addressable fire loop |
Why Burglar Alarm Cable Is Purpose-Built for Intrusion Detection
Unlike generic low-voltage cable, burglar alarm cable is engineered for the specific wiring requirements of intrusion detection systems - colour-coded cores for zone and tamper circuits, EOL resistor compatibility, and the flexibility to route sensors throughout a building. Whether you are wiring a simple 2-zone domestic panel or a 100-zone commercial system, the right intruder alarm cable simplifies installation and ensures reliable tamper monitoring.
Zone & Tamper Wiring
Colour-coded cores separate zone, tamper, power and return circuits.
01
EOL Resistor Ready
Stranded copper handles end-of-line resistor monitoring without noise.
02
NO / NC Compatibility
Clearly identified cores for normally-open and normally-closed contacts.
03
Shielded Option
Foil or braid shield for electrically noisy commercial sites.
04
Quality Control & Testing
As a burglar alarm cable manufacturer, every production batch undergoes a full set of factory tests.
Raw Material Inspection
We verify copper/CCA conductor, insulation and sheath raw materials before production starts.
In-process Online Testing
Continuous monitoring for conductor continuity, insulation integrity and cable dimension during cable extrusion.
Final Batch Testing
Finished cable will pass electrical resistance, high voltage and fire classification tests before packing and delivery.
Typical Applications
Burglar alarm cable carries low-voltage intruder detection signals for residential, commercial and industrial security installations. It maintains consistent signal performance for intruder alarm sensors and access control devices across many building types.

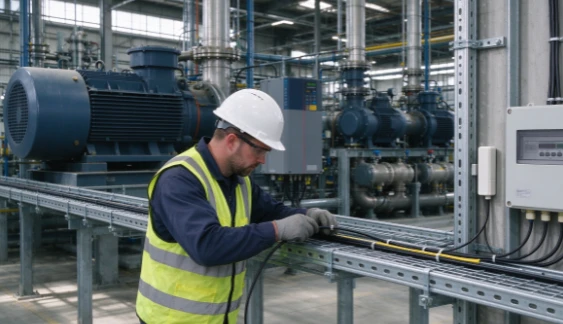

Industrial Plants
Intruder alarm wiring in factories with motors and variable speed drives. Screened burglar alarm cable eliminates false alarms triggered by heavy electromagnetic noise.
Hospitals & Medical Buildings
Burglar alarm and access control wiring in clinics and medical facilities, stable operation beside high-energy medical diagnostic equipment.
Commercial Premises
Intruder detection, gas alarm and security sensor wiring for commercial kitchens, plant rooms and utility buildings with dense power wiring.

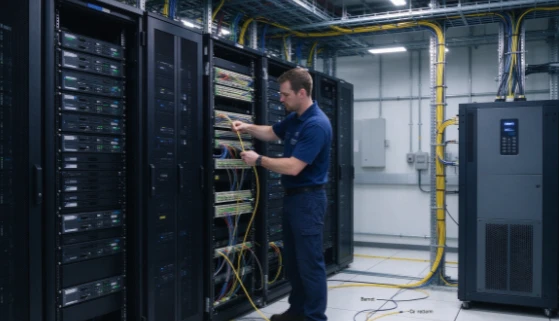

Data & Comms Rooms Burglar alarm sensors and door contact wiring inside data centres and communication cabinets, protected against interference from servers and power supplies.
Retail & Shopping Malls
PIR sensors, panic buttons and window contact wiring for shops, supermarkets and public buildings, routed alongside lighting and mains power cables.
