Jiaxing Doublewin Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of intruder alarm cable in China. If you're going to wholesale bulk intruder alarm cable made in China, welcome to get pricelist and free sample from our factory. All customized cables are with high quality and competitive price.
Intruder alarm cable serves as the signal link to connect intrusion detectors, alarm sensors, control panels and all associated components within security protection systems. This cable is built with multiple insulated conductors. Foil shielding or braided shielding can be integrated into the cable structure to suppress electromagnetic interference and maintain stable signal transmission, based on your system design requirements. The correct cable selection must take these key factors into consideration: required conductor quantity, conductor gauge, shielding configuration, electrical performance, on-site installation environment and local regulatory standards. As an independent professional cable manufacturer, our engineering team evaluates your full project specifications and proposes optimized cable construction solutions tailored to your intruder alarm system applications.
Intruder Alarm Cable Technical Data
All Intruder alarm cables are manufactured within our factory under ISO 9001:2015 quality management system. We conduct full electrical, dimensional and fire performance tests before shipment. Customised conductor size, sheath material and marking are available to satisfy your regional project standards and tender requirements.
| Product Name | Intruder Alarm Cable | |
|---|---|---|
| Conductor Cores | 2/4/6/8/10/12/14/16/18/20/24/30 cores | |
| Conductor Material | BC, TC, CCA | |
| Conductor Construction | Strander bare or tinned copper, IEC 60228 Class 5 (flexible) | |
| Conductor Size | 0.20, 0.22, 0.25, 0.35, 0.50, 0.75, 1.0, 1.5 mm² | |
| Insulation Material | PVC (70 °C) or LSZH | |
| Shielding(optional) | Al foil + drain wire, tinned Cu braid (≥85%), or foil + braid | |
| Outer Jacket | PVC (–5 to +70 °C) or LSZH (–20 to +70 °C) | |
| Rated Voltage | 300/500 V | |
| Flame performance | EN 50575 (CPR) Eca–B2ca per jacket; IEC 60332-1-2 | |
| Standards | BS 4737, BS 5839, EN 50173, IEC 60228, EN 50575 | |
| Approvals |
|
|
| Packing | 100 m / 305 m / 500 m per reel or box |
Intruder Alarm Cablel Core Counts & Size Matrix
Below are our standard high-demand intruder alarm cable configurations. Custom core quantities, mixed conductor gauges and bespoke constructions are available for OEM orders.
| Conductor Cores | Conductor Size | Shielding (Optional) | Typical Use |
| 2 core | 0.22 – 0.5 mm² | Unscreened | Simple contact, single zone |
| 4 core | 0.22 mm² | Unscreened / Foil | PIR sensor, door contact, panic button |
| 6 core | 0.22 mm² | Unscreened / Foil | Keypad, multi-sensor zone |
| 8 core | 0.22 mm² | Unscreened / Foil | Keypad with spares, combined sensor+power |
| 10 – 12 core | 0.22 mm² | Foil / Braid | Zone junction, multiple sensors |
| 16 – 24 core | 0.20 – 0.22 mm² | Braid | Panel trunk, large security system |
| 30 core | 0.20 mm² | Braid | Main riser, multi-zone building |
Intruder Alarm Cable Features
Reliable copper conductor delivers stable signal transmission for security alarm systems.

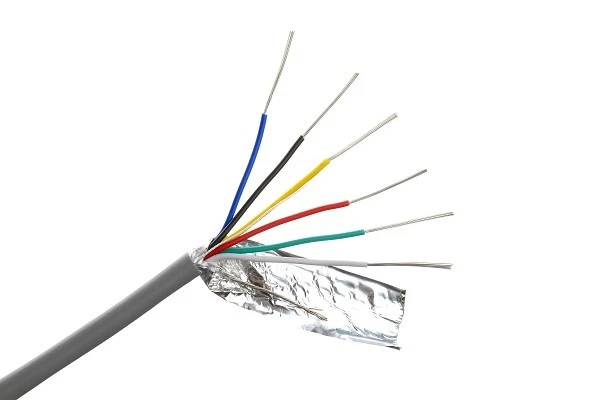

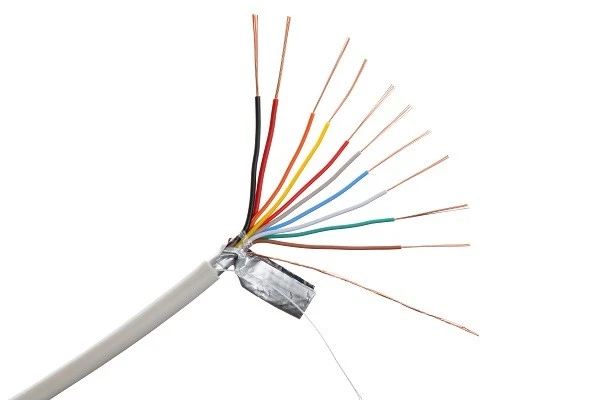

Shielding Options
Shielded versions are available for projects requiring electromagnetic interference suppression. We supply foil shield, braided shield, and drain wire constructions manufactured to your approved cable design.
01
Multiple Conductor Configurations
Custom conductor setups are available. We tailor the cable based on your requirements: conductor count, conductor gauge, insulation type and core color coding.
02
Insulation and Jacket Materials
PVC and other qualified materials can be selected to meet your requirements for mechanical performance, operating environment and relevant industry standards.
03
Custom Cable Specifications
We accept custom orders for conductor material, conductor gauge, shielding structure, jacket material, cable marking, packaging and cut length. All custom solutions are subject to our manufacturing feasibility assessment.
04
Intruder Alarm Cable Applications
Intrusion Detection Systems For security sensors, detectors and alarm control equipment that demand dedicated signal wiring.
Residential Security Systems For home security systems, to connect alarm sensors and control panels.
Commercial Security Installations For commercial security projects, where the cable construction fully satisfies specified electrical and installation standards.
Access Control Systems For signal and control wiring within access control systems, complying with the technical requirements of connected devices.
Security Equipment OEM Manufacturing For equipment manufacturers sourcing specified alarm cables for product assembly, mass production and component supply.
Intruder Alarm Cable Manufacturer for Security Systems and OEM Projects
Reliable Intruder Alarm Cable Solutions for you
why choose our products
Looking for a reliable intruder alarm cable manufacturer for your security systems, access control equipment, or low-voltage signal wiring projects?
We manufacture cable solutions for security equipment manufacturers, alarm system integrators, electrical wholesalers, importers, distributors, and OEM customers. Our products can be specified according to project requirements for conductor configuration, insulation, shielding, outer jacket, and packaging.
As a cable manufacturer, we focus on specification-based production, customization, quality inspection, and long-term B2B supply. We work with customers to evaluate their technical requirements and determine suitable cable constructions for their intended applications.
Contact us with your cable specifications, drawings, or sample requirements to discuss a customized solution and request a quotation.
Manufacturing and Quality Inspection Process
Our manufacturing workflow is determined by the approved product design and available production equipment.
Specification review
Confirm cable construction, application, technical requirements, and applicable standards.
Material verification
Check specified conductor, insulation, shielding, and jacket materials.
Cable production
Process conductors, insulation, assembly, shielding, and jacket according to the approved design.
In-process inspection
Monitor applicable production parameters and dimensions.
Finished cable testing
Perform agreed electrical, dimensional, and visual inspections.
Packaging and shipment preparation
Verify identification, length, packaging, and order requirements.
Buyers can request available product samples, relevant test records, and factory information to evaluate supplier suitability.
Start your intruder Alarm Cable Inquiry Now
